160104K630L-F

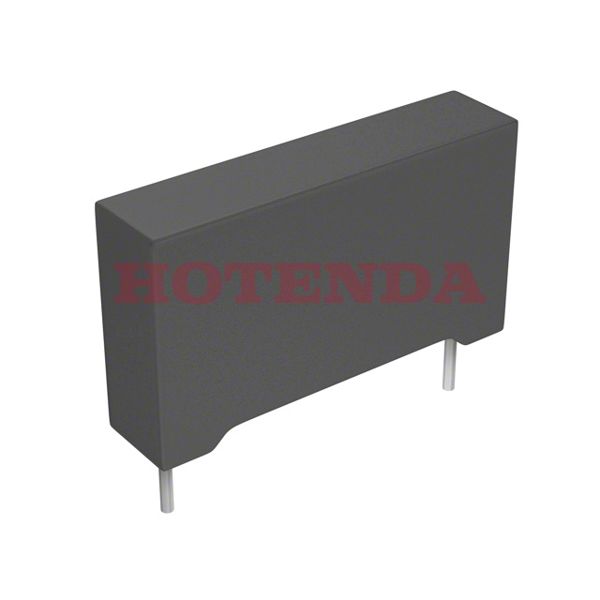

  • 160104K630L-F - 160 0.1μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole
  • 160104K630L-F - 160 0.1μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

160104K630L-F

160104K630L-F

Cornell Dubilier Electronics (CDE)

160 0.1μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

SOT-23

160104K630L-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 1.043Lx0.236W 26.50mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 220
HTS Code8532.25.00.70
Capacitance 0.1μF
Voltage - Rated DC 630V
Terminal Pitch22.5mm
Voltage - Rated AC 220V
Lead Pitch 22.5044mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.886 22.50mm
Height 15mm
Height Seated (Max) 0.591 15.00mm
Length 26.5mm
Width 6mm
RoHS StatusROHS3 Compliant
In-Stock:6074 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160104K630L-F Product Details

160104K630L-F Overview


A 0.886 22.50mm lead spacing is used in this electrical device.In a temperature range of -55°C~105°C, the device can be operated.

160104K630L-F Features




160104K630L-F Applications


There are a lot of Cornell Dubilier Electronics (CDE)
160104K630L-F applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
