STW45NM50FD datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available on our website
SOT-23
STW45NM50FD Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Through Hole
Mounting Type
Through Hole

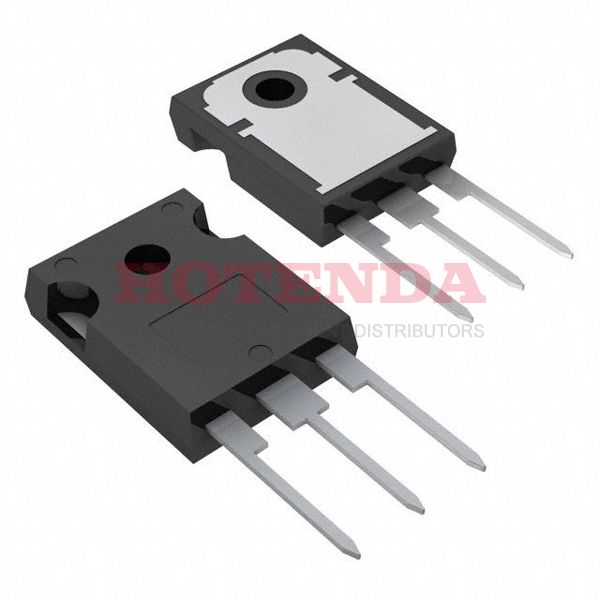

Package / Case
TO-247-3
Number of Pins
3
Weight
9.071847g
Operating Temperature
-65°C~150°C TJ
Packaging
Tube
Series
FDmesh™
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
Resistance
100mOhm
Voltage - Rated DC
500V
Technology
MOSFET (Metal Oxide)
Reach Compliance Code
not_compliant
Current Rating
45A
Base Part Number
STW45N
Pin Count
3
Number of Elements
1
Power Dissipation-Max
417W Tc
Element Configuration
Single
Power Dissipation
417W
Turn On Delay Time
26.5 ns
FET Type
N-Channel
Rds On (Max) @ Id, Vgs
100m Ω @ 22.5A, 10V
Vgs(th) (Max) @ Id
5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
3600pF @ 25V
Current - Continuous Drain (Id) @ 25°C
45A Tc
Gate Charge (Qg) (Max) @ Vgs
120nC @ 10V
Rise Time
107.5ns
Drive Voltage (Max Rds On,Min Rds On)
10V
Vgs (Max)
±30V
Fall Time (Typ)
87.7 ns
Turn-Off Delay Time
21.6 ns
Continuous Drain Current (ID)
45A
Threshold Voltage
4V
Gate to Source Voltage (Vgs)
30V
Drain to Source Breakdown Voltage
500V
Height
20.15mm
Length
15.75mm
Width
5.15mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:4887 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
150
$10.79927
$1619.8905
STW45NM50FD Product Details
STW45NM50FD Description
The STW45NM50FD Power Mosfet belongs to the FDmesh? associating all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters.
STW45NM50FD Features
100% avalanche tested
High dv/dt and avalanche capabilities
Low input capacitance and gate charge
Low gate input resistance
STW45NM50FD Applications
Switching applications
