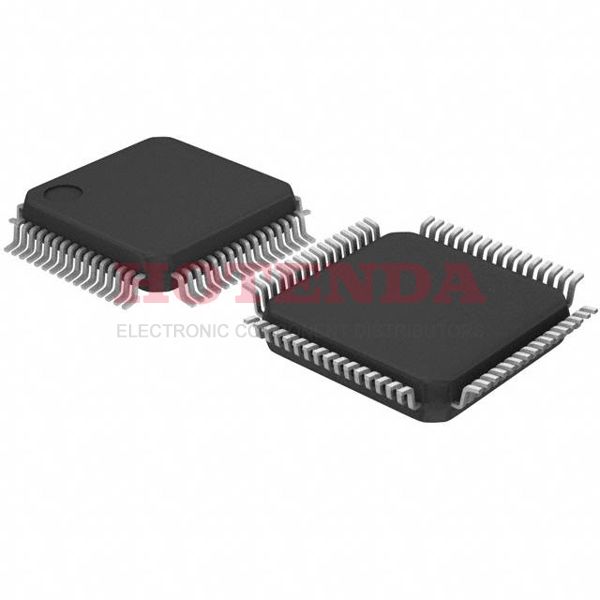

STM32F101RFT6 Description
The STM32F101xF and STM32F101xG access line series integrates a high-performance ARM Cortex - M3 32-bit RISC core running at 36 MHz, high-speed embedded memory (SRAM with up to 1 MB and 80K bytes of flash memory), and a variety of enhanced Igamo and peripherals connected to two APB buses. All devices offer a 12-bit ADC, ten universal 16-bit timers, and standard and advanced communication interfaces: up to two I2C, three SPI and five USART. The STM32F101xx XL density access line series operates in the temperature range of-40 to + 85 °C with a power supply voltage of 2.0 to 3.6V. A comprehensive set of power-saving modes allows the design of low-power applications.
STM32F101RFT6 Features
? Core: ARM? 32-bit Cortex?-M3 CPU with MPU
– 36 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance
– Single-cycle multiplication and hardware
division
? Memories
– 768 Kbytes to 1 Mbyte of Flash memory
(dual bank with read-while-write capability)
– 80 Kbytes of SRAM
– Flexible static memory controller with 4
Chip Select. Supports Compact Flash,
SRAM, PSRAM, NOR and NAND
memories
– LCD parallel interface, 8080/6800 modes
? Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC with calibration
capability
– 32 kHz oscillator for RTC with calibration
? Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
? 1 x 12-bit, 1 μs A/D converters (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
? 2 × 12-bit D/A converters
? DMA
– 12-channel DMA controller
– Peripherals supported: timers, ADC, DAC,
SPIs, I2Cs and USARTs
? Up to 112 fast I/O ports
STM32F101RFT6 Applications
medical and handheld equipment
PCperipherals and gaming
GPS platforms
industrial applications
PLC
Printers
scanners
alarm systems
power meters
video intercom
