Name: PIC18F26K22T-I/SS
Brand: Microchip Technology
SKU: PIC18F26K22T-I/SS
Price: 3.80000 USD
Availability: InStock

new-10%

PIC18F26K22T-I/SS

Manufacturer part number:PIC18F26K22T-I/SS

Manufacturer:Microchip Technology

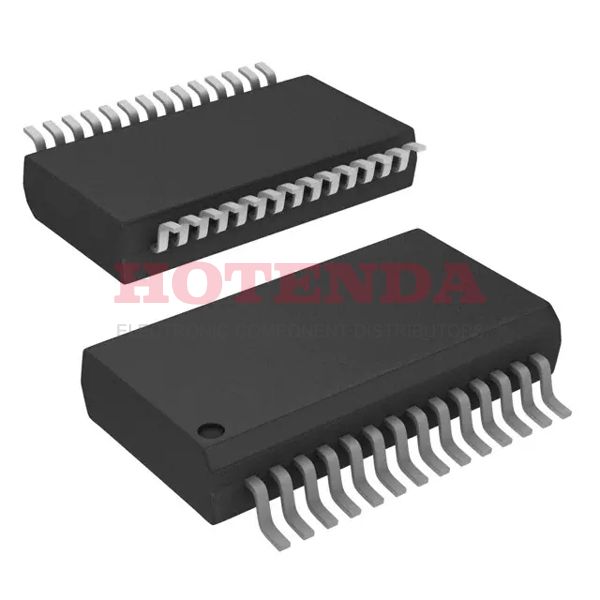

Description:64KB 32K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F26K22 28 Pin 64MHz 5V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC18F26K22T-I/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-SSOP
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/USART
MSL	MSL 1 - Unlimited
Qualification	AEC-Q100
Number of I/Os	25 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC18F26
Mfr	Microchip Technology
Data Converters	A/D 19x10b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 18K
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPERATES 2.3 V MINIMUM SUPPLY AT 20 MHZ
HTS Code	8542.31.00.01
Max Power Dissipation	1W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	64MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F26K22
Pin Count	28
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Interface	I2C, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	24
Speed	64MHz
RAM Size	3.8K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 32K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	12mA
Bit Size	8
Data Converter	A/D 19x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	7
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	1K x 8
On Chip Program ROM Width	16
CPU Family	PIC
Number of Programmable I/O	25
Number of ADC Channels	17 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	10.2mm
Height Seated (Max)	2mm
Width	5.3 mm
Height	1.75 mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18F26K22T-I/SS Product Details

PIC18F26K22T-I/SS Description

PIC18F26K22T-I/SS is a 28-Pin, Low-Power, High-Performance Microcontroller with XLP Technology. This PIC18F26K22T-I/SS offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Flash program memory. On top of these features, the PIC18(L)F2X/4XK22 family introduces design enhancements that make these microcontrollers a logical choice for many highperformance, power sensitive applications.
