Name: PIC18LF25K83T-I/SS
Brand: Microchip Technology
SKU: PIC18LF25K83T-I/SS
Price: 2.28000 USD
Availability: InStock

new-10%

PIC18LF25K83T-I/SS

Manufacturer part number:PIC18LF25K83T-I/SS

Manufacturer:Microchip Technology

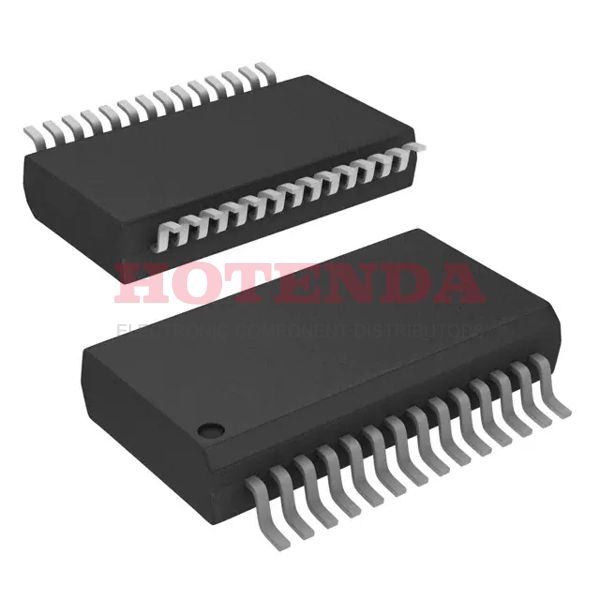

Description:32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18LF25K83 64 MHz 3V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC18LF25K83T-I/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Supplier Device Package	28-SSOP
Number of I/Os	25
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC18LF25
Mfr	Microchip Technology
Data Converters	A/D 24x12b; D/A 1x5b
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 18K
Published	2017
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Additional Feature	OPERATES AT 1.8V MINIMUM SUPPLT AT 16 MHZ
HTS Code	8542.31.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3V
Terminal Pitch	0.65mm
Frequency	64 MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	PIC18LF25K83
JESD-30 Code	R-PDSO-G28
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.7V
Interface	CAN, I2C, LIN, SPI, UART
Max Supply Voltage	3.6 V
Min Supply Voltage	1.8 V
Memory Size	32 kB
Oscillator Type	Internal
Number of I/O	25
Speed	64MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	CANbus, I2C, LINbus, SPI, UART/USART
Data Converter	A/D 24x12b; D/A 1x5b
Has ADC	YES
DMA Channels	YES
Data Bus Width	8 b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	4
Core Architecture	PIC
EEPROM Size	1K x 8
On Chip Program ROM Width	8
Screening Level	TS 16949
Number of UART Channels	2
Number of ADC Channels	24
Number of PWM Channels	4
Number of I2C Channels	2
Ambient Temperature Range High	85 °C
Number of SPI Channels	1
Length	10.2mm
Height Seated (Max)	2mm
Width	5.3mm
Height	2 mm
RoHS Status	ROHS3 Compliant

PIC18LF25K83T-I/SS Product Details

PIC18LF25K83T-I/SS Overview
