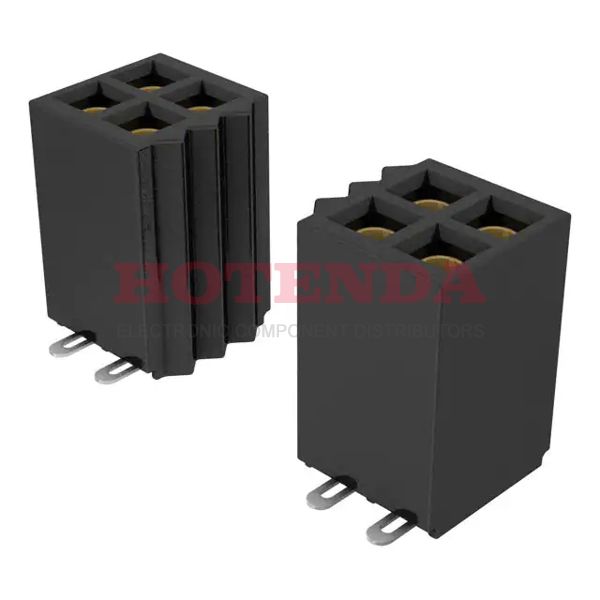

Name: SFMC-111-L2-S-D-K-TR
Brand: Samtec Inc.
SKU: SFMC-111-L2-S-D-K-TR
Availability: InStock

new-10%

SFMC-111-L2-S-D-K-TR

Manufacturer part number:SFMC-111-L2-S-D-K-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)22 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFMC-111-L2-S-D-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	22
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Total Number of Contacts	22
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-111-L2-S-D-K-TR Product Details

SFMC-111-L2-S-D-K-TR Overview

This product is packaged in a Receptacle carton.Surface Mount is the mounting type.We package the product with a Tape & Reel (TR) case.Specifically, it is one of the products in the Tiger Eye™ SFMC Series.In many ways, its Pick and Place feature makes it more powerful.-55°C~125°C Operating Temperature is the default.
