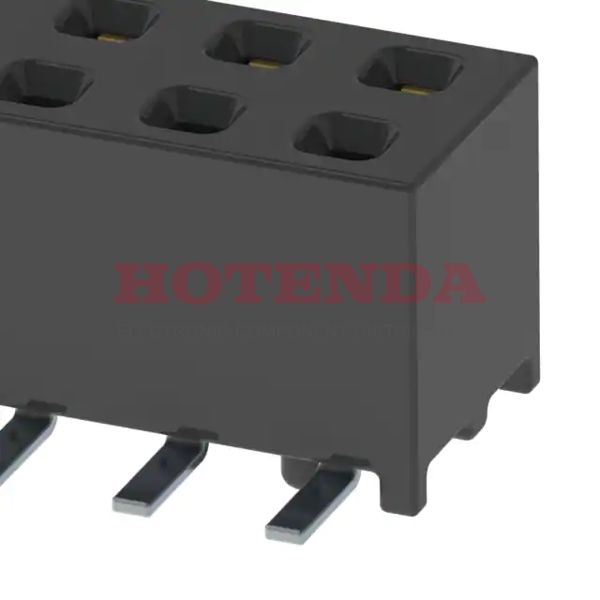

Name: MMS-117-02-F-DV-A-P-TR
Brand: Samtec Inc.
SKU: MMS-117-02-F-DV-A-P-TR
Availability: InStock

new-10%

MMS-117-02-F-DV-A-P-TR

Manufacturer part number:MMS-117-02-F-DV-A-P-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 34 Positions Female Socket

Case Package:SOT-23

Datasheet:MMS-117-02-F-DV-A-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	MMS
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	34
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Total Number of Contacts	34
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm

MMS-117-02-F-DV-A-P-TR Product Details

MMS-117-02-F-DV-A-P-TR Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the MMS Series, it belongs to the range of products of that series.A number of features make the Board Guide, Pick and Place feature more powerful.-55°C~125°C Operating Temperature is the default operating temperature for the device.
