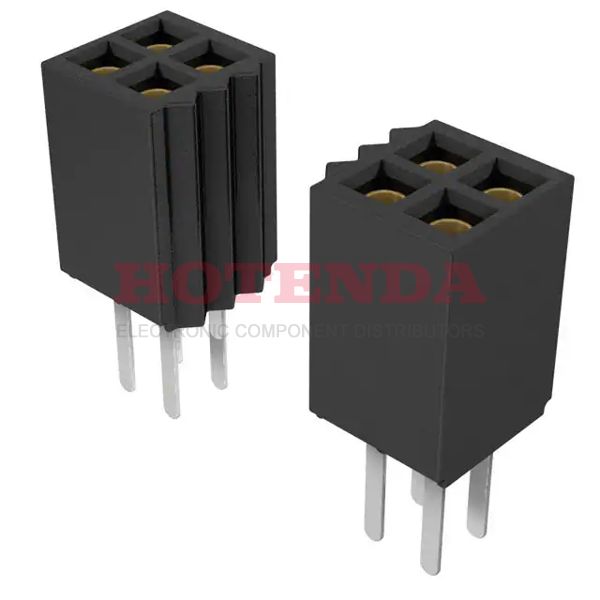

Name: SFMC-112-L3-SM-D
Brand: Samtec Inc.
SKU: SFMC-112-L3-SM-D
Availability: InStock

new-10%

SFMC-112-L3-SM-D

Manufacturer part number:SFMC-112-L3-SM-D

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)24 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFMC-112-L3-SM-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	24
Number of Rows	2
Gender	Female
Additional Feature	LOW INSERTION FORCE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.075 1.91mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-112-L3-SM-D Product Details

SFMC-112-L3-SM-D Overview

The packaging is Receptacle.There is a Through Hole mounting type for the device.In order to package the product, a Tube case is used.A product of the Tiger Eye™ SFMC Series, it belongs to the range of products of that series.There are also other features like LOW INSERTION FORCE, to name a few.Through Hole represents the mounting point for the part.This device operates at a temperature of -55°C~125°C.
