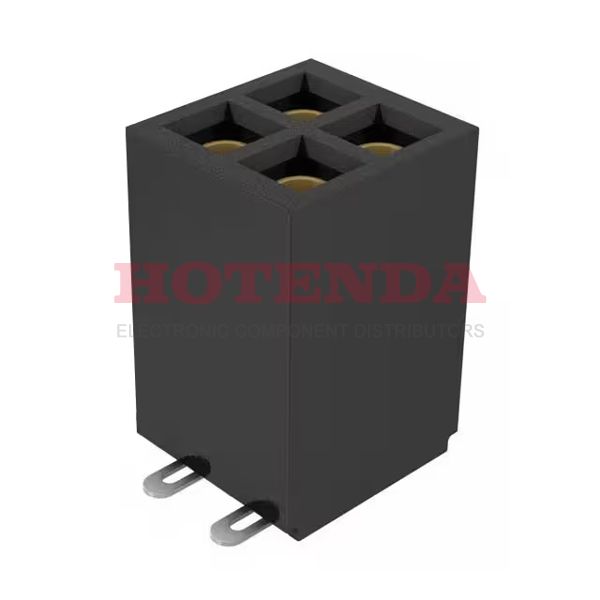

Name: SFMC-102-02-L-D-TR
Brand: Samtec Inc.
SKU: SFMC-102-02-L-D-TR
Price: 1.87000 USD
Availability: InStock

new-10%

SFMC-102-02-L-D-TR

Manufacturer part number:SFMC-102-02-L-D-TR

Manufacturer:Samtec Inc.

Description:SFMC-102-02-L-D-TR datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:SFMC-102-02-L-D-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	4
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2.9A per Contact
Total Number of Contacts	4
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.115 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.18 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Durability	10000 Cycles
Insertion Force-Max	.695 N
Withdrawl Force-Min	.556 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-102-02-L-D-TR Product Details

SFMC-102-02-L-D-TR Overview

The packaging is Receptacle.Surface Mount is the mounting type.We package the product with a Tape & Reel (TR) case.The product is part of the Tiger Eye? SFMC Series.It runs at -55°C~125°C Operating Temperature.
