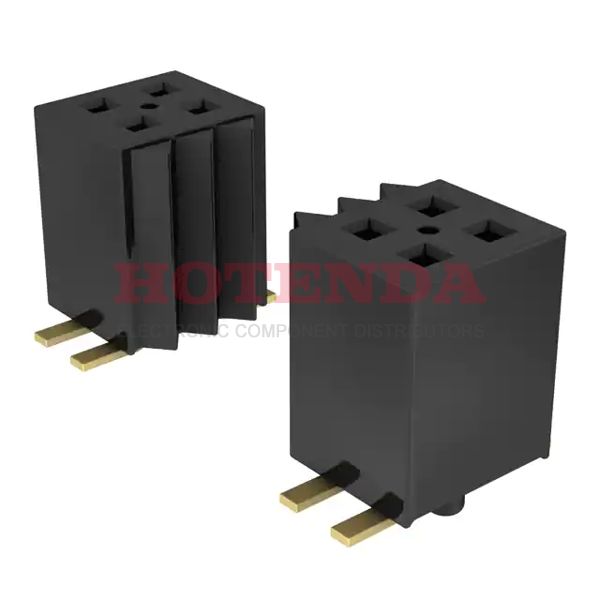

Name: FLE-140-01-G-DV-A
Brand: Samtec Inc.
SKU: FLE-140-01-G-DV-A
Price: 17.05000 USD
Availability: InStock

new

FLE-140-01-G-DV-A

Manufacturer part number:FLE-140-01-G-DV-A

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 80 Positions Female Socket

Case Package:SOT-23

Datasheet:FLE-140-01-G-DV-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	FLE
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	80
Number of Rows	2
Gender	Female
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2A per Contact
Total Number of Contacts	80
Orientation	Straight
Depth	3.33mm
Insulation Height	0.172 4.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.131 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.417 N
Withdrawl Force-Min	.417 N
Length	50.91mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FLE-140-01-G-DV-A Product Details

FLE-140-01-G-DV-A Overview

The product comes in a package of Receptacle.Surface Mount is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the FLE Series.It is more powerful in many ways due to its Board Guide feature.It operates at an operating temperature of -55°C~125°C.
