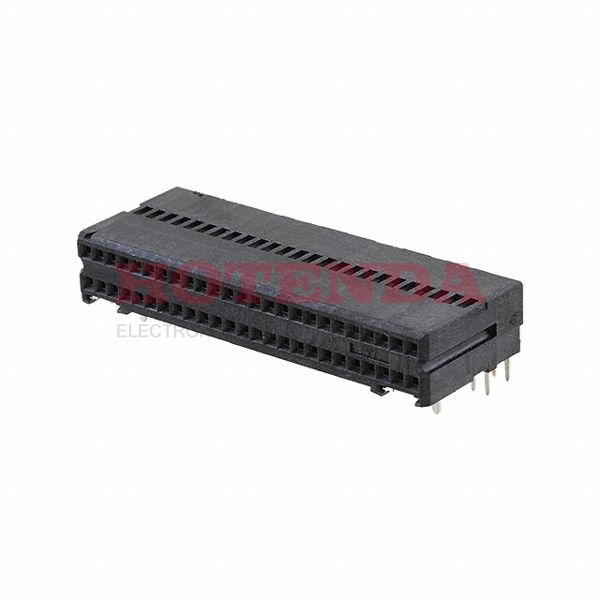

Name: 5-103911-4
Brand: TE Connectivity AMP Connectors
SKU: 5-103911-4
Price: 10.19000 USD
Availability: InStock

new

5-103911-4

Manufacturer part number:5-103911-4

Manufacturer:TE Connectivity AMP Connectors

Description:5-103911-4 datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5-103911-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic, Glass Filled
Housing Material	Thermoplastic
PCB Mounting Orientation	Right Angle
PCB Mount Retention	With
Operating Temperature	-65°C~105°C
Packaging	Tube
Published	2008
Series	AMPMODU System 50
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Voltage - Rated	30VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	1A
Orientation	Right Angle
Depth	11.55mm
Insulation Height	0.217 5.51mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.100 2.54mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Housing Color	Black
Lead Length	2.54mm
Operating Supply Voltage	30V
Insulation Resistance	5GOhm
ELV	Compliant
Max Voltage Rating (AC)	30V
Contact Current Rating	4A
Height	5.511mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Length - Tail	2.54mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5-103911-4 Product Details

5-103911-4 Overview

The product comes in a package of Receptacle.Its mounting type is Through Hole, Right Angle.It is necessary to use a Tube case for packaging the product.The product belongs to the AMPMODU System 50 Series.A number of features make the Board Guide feature more powerful.It's mounted by Through Hole.It operates at a voltage of 30V.-65°C~105°C Operating Temperature is the default.
