Name: HLE-106-02-SM-DV-PE-BE
Brand: Samtec Inc.
SKU: HLE-106-02-SM-DV-PE-BE
Price: 6.55000 USD
Availability: InStock

new-10%

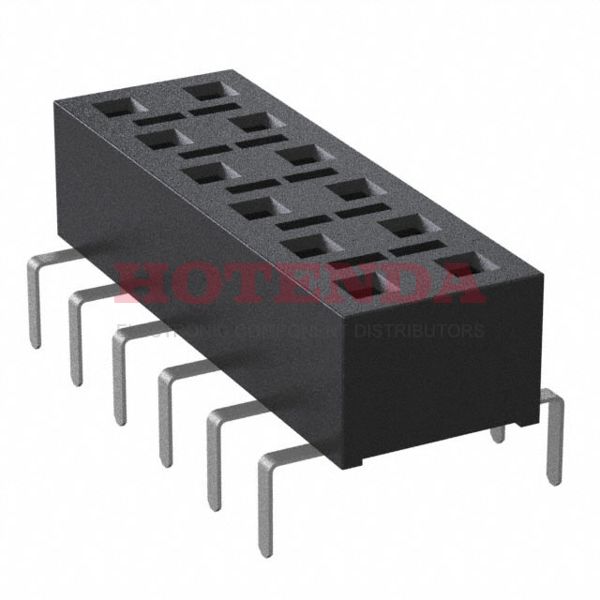

HLE-106-02-SM-DV-PE-BE

Manufacturer part number:HLE-106-02-SM-DV-PE-BE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom Entry, Pass ThroughSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)12 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-106-02-SM-DV-PE-BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle, Bottom Entry, Pass Through
Number of Positions	12
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Insulation Height	0.138 3.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.090 2.29mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

HLE-106-02-SM-DV-PE-BE Product Details

HLE-106-02-SM-DV-PE-BE Overview

You get it in Receptacle, Bottom Entry, Pass Through packaging.Through Hole is the mount type.It's packaged in a Tube case.Specifically, it is one of the products in the HLE Series.There's a Through Hole on the part.It runs at -55°C~125°C Operating Temperature.
