Name: SFC-150-T2-L-D-A
Brand: Samtec Inc.
SKU: SFC-150-T2-L-D-A
Price: 18.41000 USD
Availability: InStock

new

SFC-150-T2-L-D-A

Manufacturer part number:SFC-150-T2-L-D-A

Manufacturer:Samtec Inc.

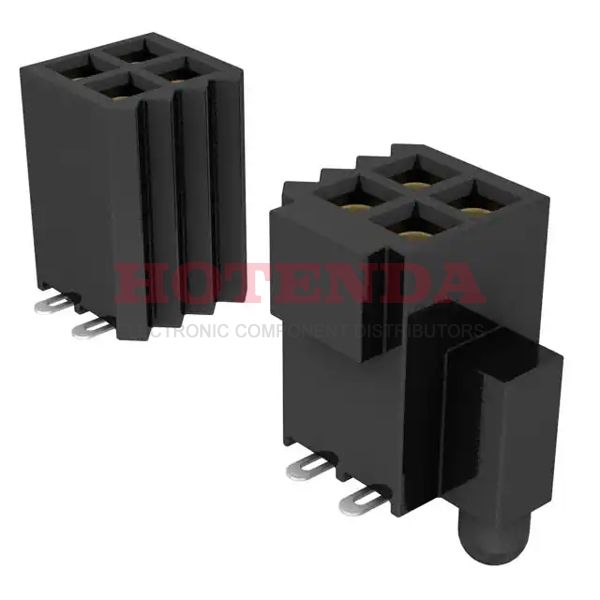

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 100 Positions Female Socket

Case Package:SOT-23

Datasheet:SFC-150-T2-L-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2013
Series	Tiger Eye™ SFC
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	100
Number of Rows	2
Voltage - Rated	350VAC
Additional Feature	ALIGNMENT PIN
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.1A per Contact
Total Number of Contacts	100
Orientation	Straight
Depth	3.68mm
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Max Voltage Rating (AC)	350V
Insertion Force-Max	.695 N
Length	66.67mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

SFC-150-T2-L-D-A Product Details

SFC-150-T2-L-D-A Overview

It comes in Receptacle packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the Tiger Eye™ SFC Series of products.In addition, there are other features such as ALIGNMENT PIN, to mention only a few.Its Board Guide feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
