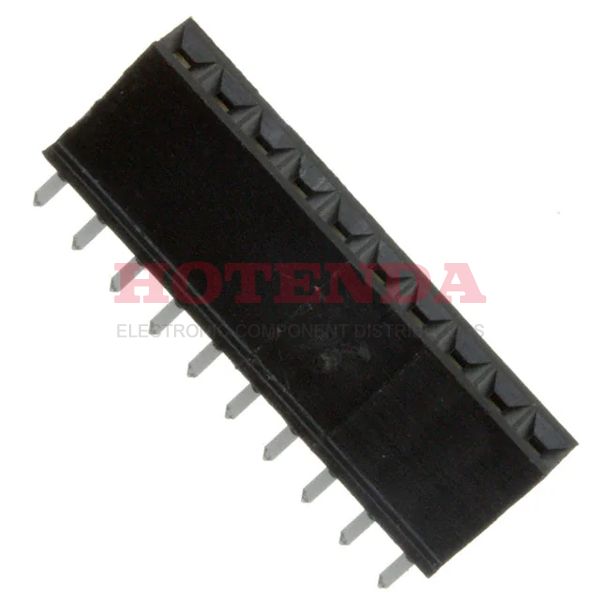

Name: 66951-010LF
Brand: Amphenol ICC (FCI)
SKU: 66951-010LF
Availability: InStock

new-10%

66951-010LF

Manufacturer part number:66951-010LF

Manufacturer:Amphenol ICC (FCI)

Description:1 RowsReceptacleSolderBrassThrough HoleTubeGoldPolyester, Glass Filled10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:66951-010LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Housing Material	Thermoplastic
Operating Temperature	-65°C~125°C
Packaging	Tube
Series	Dubox™, BergCon® PV™
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Black
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	1
Gender	Receptacle
Voltage - Rated	1250V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Pitch	2.54mm
Orientation	Straight
Depth	5.08mm
Insulation Height	0.325 8.25mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.142 3.60mm
Number of Contacts	10
Contact Finish - Post	Tin
Contact Gender	Female
Housing Color	Black
Contact Resistance	15mOhm
Max Voltage Rating (AC)	1.25kV
Length	25.4mm
Width	5.08mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

66951-010LF Product Details

66951-010LF Overview

You get it in Receptacle packaging.This device has a mounting type of Through Hole.Packaging is performed using a Tube case.This product is from the Dubox™, BergCon® PV™ Series.Temperatures below 125°C are best for using it.Temperature must be -65°C to operate this device.Automotive, General Purpose, Industrial, Medical, Telecommunications is one possible application.There's a Through Hole mount on the part.As a result, the device runs at -65°C~125°C Operating Temperature.
