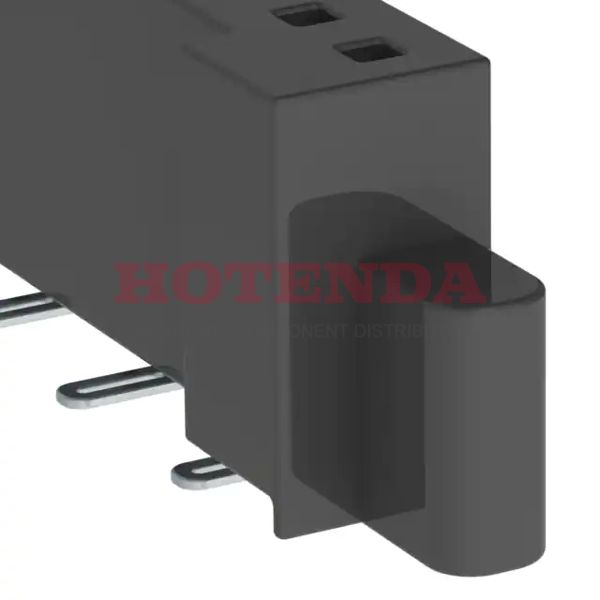

Name: SFM-120-T2-L-S-P-TR
Brand: Samtec Inc.
SKU: SFM-120-T2-L-S-P-TR
Availability: InStock

new-10%

SFM-120-T2-L-S-P-TR

Manufacturer part number:SFM-120-T2-L-S-P-TR

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-120-T2-L-S-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	20
Number of Rows	1
Voltage - Rated	250VAC
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	20
Terminal Pitch	2.54mm
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
Body Breadth	0.095 inch
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.556 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-120-T2-L-S-P-TR Product Details

SFM-120-T2-L-S-P-TR Overview

This product is packaged in a Receptacle cartonThe device's mounting type is Surface Mount.Packaging the product involves using a Tape & Reel (TR) case.The product is a part of the Tiger Eye™ SFM Series.Furthermore, there are other features available, such as ROHS COMPLIANT, to name a few.A number of aspects of its Pick and Place feature make it more powerful.Running in -55°C~125°C Operating Temperature.
