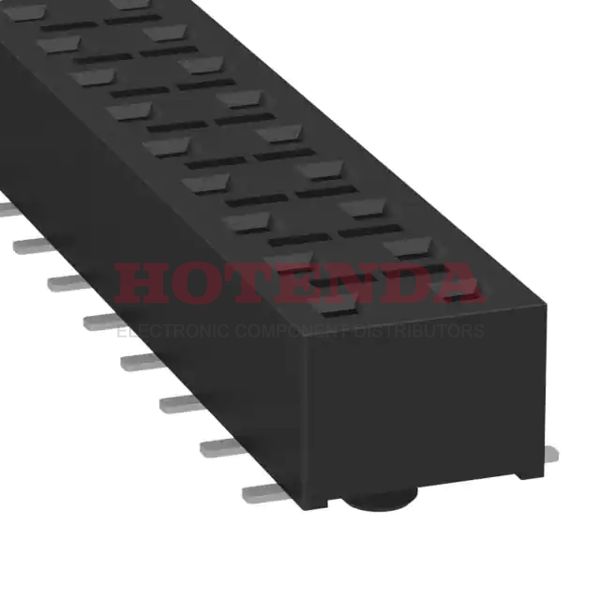

Name: HLE-116-02-L-DV-BE-A-P-TR
Brand: Samtec Inc.
SKU: HLE-116-02-L-DV-BE-A-P-TR
Availability: InStock

new-10%

HLE-116-02-L-DV-BE-A-P-TR

Manufacturer part number:HLE-116-02-L-DV-BE-A-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderBeryllium CopperSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)32 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-116-02-L-DV-BE-A-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	HLE
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	32
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	32
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

HLE-116-02-L-DV-BE-A-P-TR Product Details

HLE-116-02-L-DV-BE-A-P-TR Overview

You'll get Receptacle, Bottom Entry packages.Mounting type Surface Mount is selected for the device.To package the product, a Tape & Reel (TR) case is used.This is from the HLE Series.Its Board Guide, Pick and Place feature makes it more powerful in a number of ways.This device operates at a temperature of -55°C~125°C.
