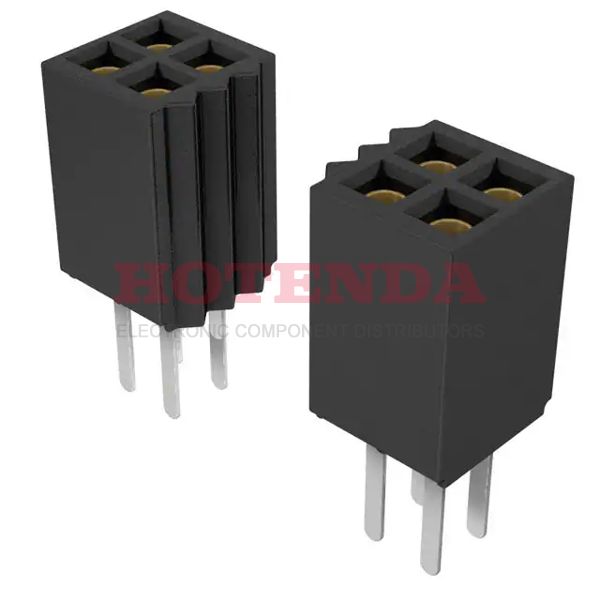

Name: SFMC-122-01-L-D-P-TR
Brand: Samtec Inc.
SKU: SFMC-122-01-L-D-P-TR
Availability: InStock

new-10%

SFMC-122-01-L-D-P-TR

Manufacturer part number:SFMC-122-01-L-D-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)44 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFMC-122-01-L-D-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFMC
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	44
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2.9A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-122-01-L-D-P-TR Product Details

SFMC-122-01-L-D-P-TR Overview

This product is packaged in a Receptacle carton.A Through Hole mounting type is specified for the device.In order to package the product, a Tape & Reel (TR) case is used.It is part of the Tiger Eye™ SFMC Series of products.In many ways, Pick and Place makes it more powerful.Operating temperature is set to -55°C~125°C.
