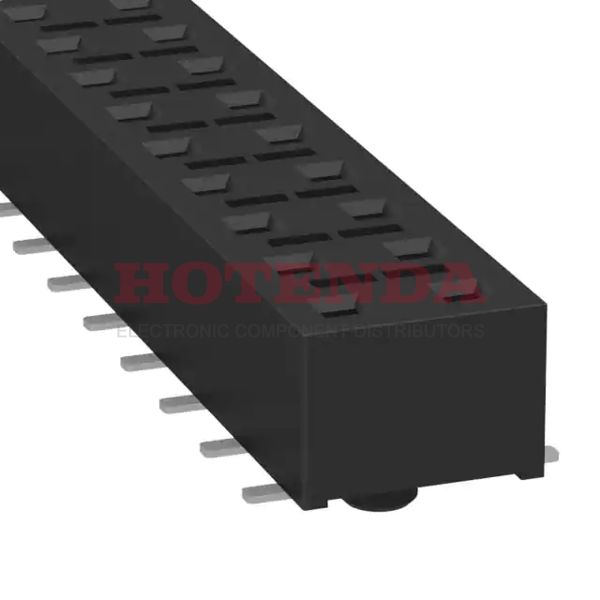

Name: HLE-114-02-L-DV-A-TR
Brand: Samtec Inc.
SKU: HLE-114-02-L-DV-A-TR
Availability: InStock

new-10%

HLE-114-02-L-DV-A-TR

Manufacturer part number:HLE-114-02-L-DV-A-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)28 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-114-02-L-DV-A-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	HLE
JESD-609 Code	e3
Feature	Board Guide
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	28
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	28
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

HLE-114-02-L-DV-A-TR Product Details

HLE-114-02-L-DV-A-TR Overview

The product is packaged in Receptacle.Surface Mount is the mounting type of the device.It has been determined that a Tape & Reel (TR) case is necessary to package the product.Product number HLE belongs to the HLE Series.Many aspects of its Board Guide feature increase its effectiveness.Running in -55°C~125°C Operating Temperature.
