Name: HLE-112-02-G-DV-PE-BE-LC
Brand: Samtec Inc.
SKU: HLE-112-02-G-DV-PE-BE-LC
Availability: InStock

new-10%

HLE-112-02-G-DV-PE-BE-LC

Manufacturer part number:HLE-112-02-G-DV-PE-BE-LC

Manufacturer:Samtec Inc.

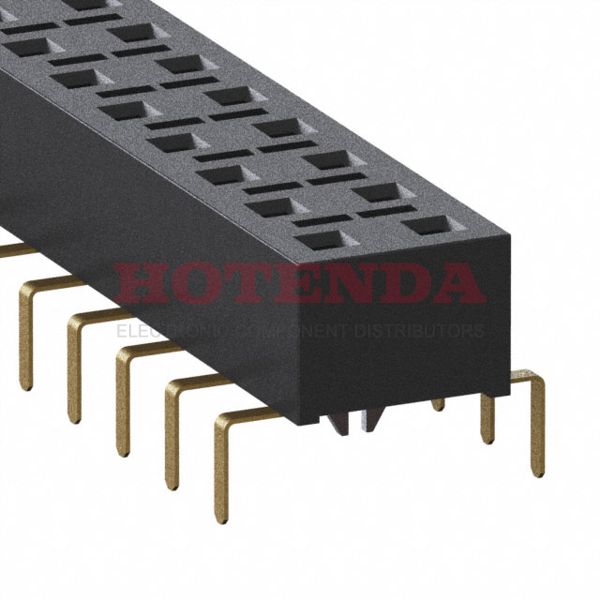

Description:2 Rows Receptacle, Bottom Entry, Pass Through Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 24 Positions Female Socket

Case Package:SOT-23

Datasheet:HLE-112-02-G-DV-PE-BE-LC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e4
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle, Bottom Entry, Pass Through
Number of Positions	24
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Insulation Height	0.138 3.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.090 2.29mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

HLE-112-02-G-DV-PE-BE-LC Product Details

HLE-112-02-G-DV-PE-BE-LC Overview

The packaging is Receptacle, Bottom Entry, Pass Through.Mounting type is Through Hole.To package the product, we use a Tube case.This product is from the HLE Series.A number of advantages are provided by its Board Lock feature.Mounted by Through Hole.Device runs at -55°C~125°C Operating Temperature.
