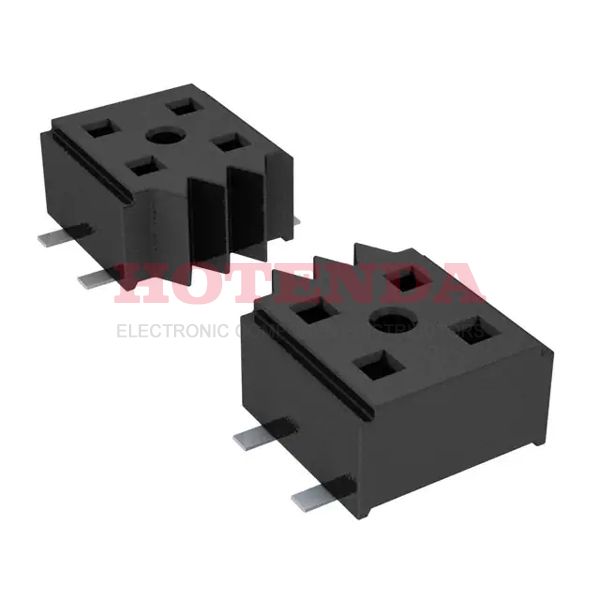

Name: CLT-130-02-F-D-BE-K
Brand: Samtec Inc.
SKU: CLT-130-02-F-D-BE-K
Availability: InStock

new-10%

CLT-130-02-F-D-BE-K

Manufacturer part number:CLT-130-02-F-D-BE-K

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 60 Positions Female Socket

Case Package:SOT-23

Datasheet:CLT-130-02-F-D-BE-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLT
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Bottom Entry
Number of Positions	60
Number of Rows	2
Gender	Female
Additional Feature	BOTTOM ENTRY, PICK&PLACE PAD
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	60
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Body Depth	0.084 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Durability	100 Cycles
Insertion Force-Max	.5004 N
Withdrawl Force-Min	.1668 N
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLT-130-02-F-D-BE-K Product Details

CLT-130-02-F-D-BE-K Overview

The product comes in a package of Receptacle, Bottom Entry.Surface Mount is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the CLT Series.Among other features are BOTTOM ENTRY, PICK&PLACE PAD, to name only a few.It is more powerful in many ways due to its Pick and Place feature.It operates at an operating temperature of -55°C~125°C.
