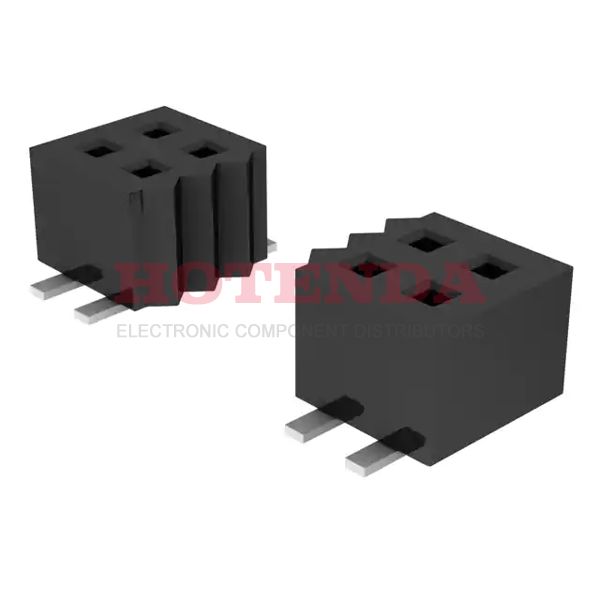

Name: CLP-125-02-F-D-BE-TR
Brand: Samtec Inc.
SKU: CLP-125-02-F-D-BE-TR
Availability: InStock

new-10%

CLP-125-02-F-D-BE-TR

Manufacturer part number:CLP-125-02-F-D-BE-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)50 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLP-125-02-F-D-BE-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Bottom Entry
Number of Positions	50
Number of Rows	2
Gender	Female
Additional Feature	BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	50
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	240V
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.09 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.05 inch
PCB Contact Row Spacing	3.7338 mm
Durability	100 Cycles
Withdrawl Force-Min	.556 N
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-125-02-F-D-BE-TR Product Details

CLP-125-02-F-D-BE-TR Overview

This product is packaged in a Receptacle, Bottom Entry cartonMounting type Surface Mount is selected for the device.Packaged in a Tape & Reel (TR) case.A product of the CLP Series, it belongs to the range of products of that series.There are also other features, like BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW, to name a few.It operates at an operating temperature of -55°C~125°C.
