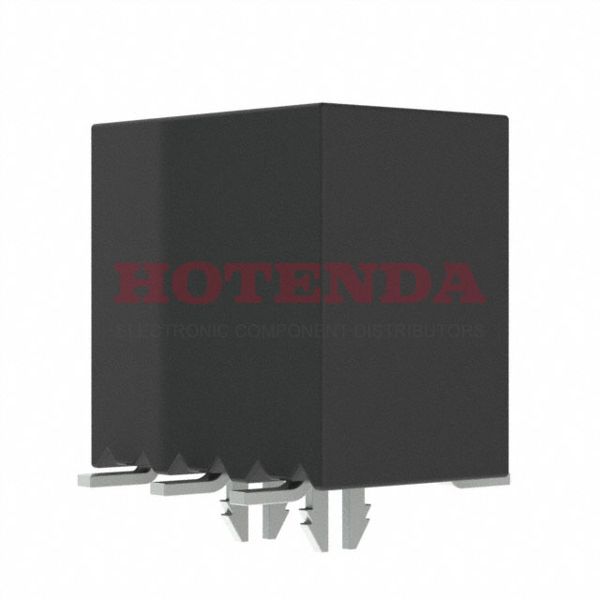

Name: SSM-103-SM-DV-LC-P-TR
Brand: Samtec Inc.
SKU: SSM-103-SM-DV-LC-P-TR
Availability: InStock

new-10%

SSM-103-SM-DV-LC-P-TR

Manufacturer part number:SSM-103-SM-DV-LC-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Pass ThroughSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)6 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-103-SM-DV-LC-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	SSM
JESD-609 Code	e3
Feature	Board Lock, Pick and Place
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Pass Through
Number of Positions	6
Number of Rows	2
Gender	Female
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	6
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SSM-103-SM-DV-LC-P-TR Product Details

SSM-103-SM-DV-LC-P-TR Overview

A Receptacle, Pass Through package is included with it.This device is mounted in the Surface Mount position.Tape & Reel (TR) cases are used to package the product.This product is in the SSM Series.Many aspects of its Board Lock, Pick and Place feature increase its effectiveness.In this case, the device operates at -55°C~125°C Operating Temperature.
