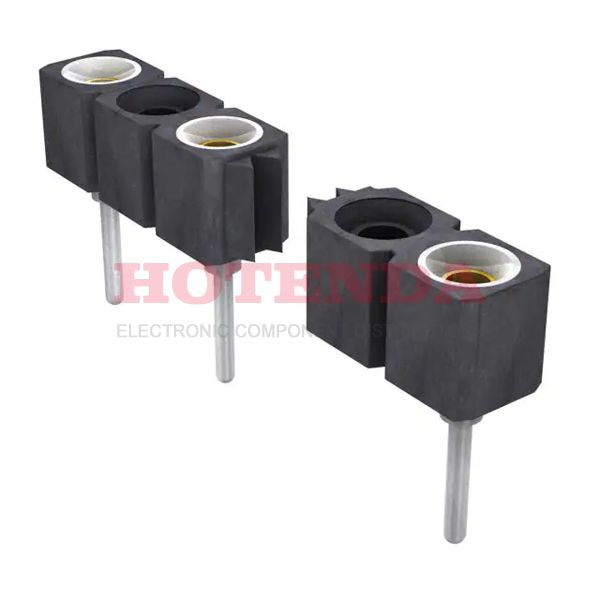

Name: 310-83-120-01-609101
Brand: Preci-Dip
SKU: 310-83-120-01-609101
Availability: InStock

new-10%

310-83-120-01-609101

Manufacturer part number:310-83-120-01-609101

Manufacturer:Preci-Dip

Description:1 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:310-83-120-01-609101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	310
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	20
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A
Terminal Pitch	5.08mm
Insulation Height	0.165 4.20mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.200 5.08mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	3.9 inch
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Mating Contact Pitch	0.2 inch
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

310-83-120-01-609101 Product Details

310-83-120-01-609101 Overview

This product is packaged in a Socket carton.It's mounted Through Hole.A Bulk case is used for packaging.The product is a member of the 310 Series.There's a Through Hole mount on the part.The device runs in -55°C~125°C Operating Temperature.
