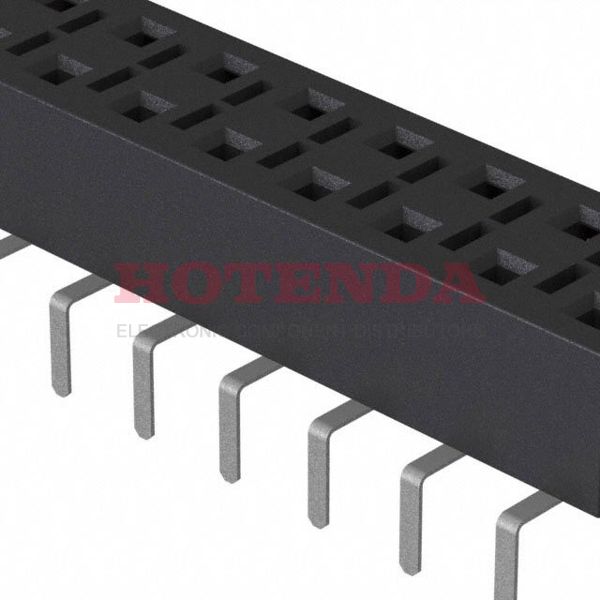

Name: HLE-117-02-LM-DV-PE
Brand: Samtec Inc.
SKU: HLE-117-02-LM-DV-PE
Availability: InStock

new-10%

HLE-117-02-LM-DV-PE

Manufacturer part number:HLE-117-02-LM-DV-PE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Pass ThroughSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)34 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-117-02-LM-DV-PE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	HLE
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle, Pass Through
Number of Positions	34
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Insulation Height	0.138 3.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.090 2.29mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

HLE-117-02-LM-DV-PE Product Details

HLE-117-02-LM-DV-PE Overview

You'll get Receptacle, Pass Through packages.Through Hole is the mounting type of the device.An orange Tube case is used to package the product.The product is a member of the HLE Series.By Through Hole, the part is mounted.Devices operate at -55°C~125°C operating temperatures.
