Name: BCS-119-L-S-TE-013
Brand: Samtec Inc.
SKU: BCS-119-L-S-TE-013
Availability: InStock

new-10%

BCS-119-L-S-TE-013

Manufacturer part number:BCS-119-L-S-TE-013

Manufacturer:Samtec Inc.

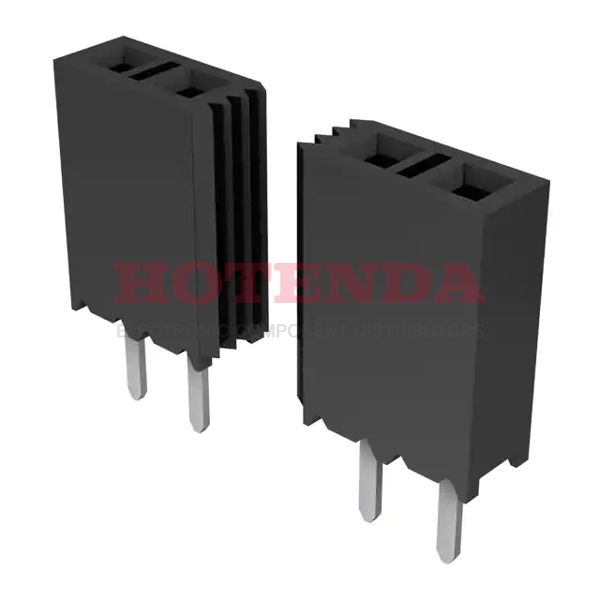

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled19 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-119-L-S-TE-013 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2015
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	19
Number of Rows	1
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Terminal Pitch	2.54mm
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	18
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.122 3.10mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.29 inch
Insulation Resistance	5000000000Ohm
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	375VAC V
Durability	500 Cycles
Withdrawl Force-Min	.834 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-119-L-S-TE-013 Product Details

BCS-119-L-S-TE-013 Overview

Packaging is in the form of Receptacle.Through Hole is the type of mounting for the device.An orange Tube case is used to package the product.There is a product in the Tiger Claw™ BCS Series.-55°C~125°C Operating Temperature is used by the device.
