5V49EE702NDGI Overview

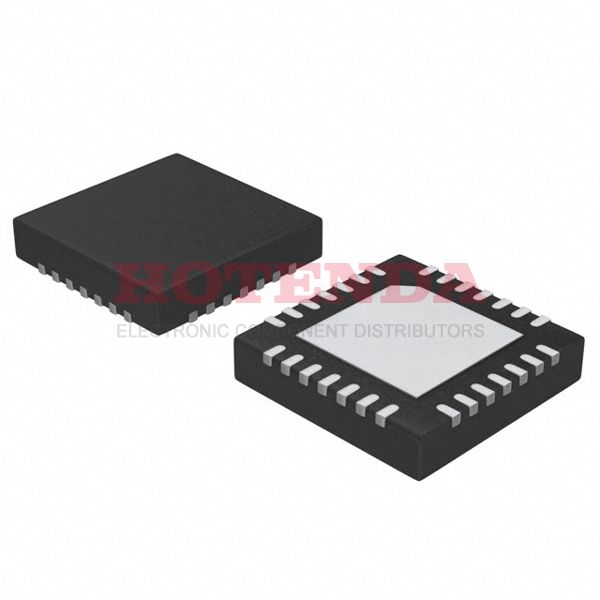

As a clock IC, it uses the Tube package. Clock PLL is embedded in the 28-VFQFN Exposed Pad package. LVCMOS, LVTTL, Crystal is designed for clock generator's input. A total of 1 circuits are implemented to access the full performance of the electrical part. There is a maximum frequency of 500MHz Max with this clock-based frequency generator. Because of the Surface Mount, clock PLL can be easily mounted on the panel. Clock generators should operate with the voltage supply of 3.135V~3.465V. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. HCSL, LVCMOS, LVDS, LVPECL, LVTTL logic levels are supported by this RF synthesizer. An electrical part such as this one can be classified as a Clock Generator, Multiplexer component. The related electrical components for the base part number IDT5V49EE702 can be found below. There is an electronic part in this series that belongs to the VersaClock? III family.
5V49EE702NDGI Features
Available in the 28-VFQFN Exposed Pad
5V49EE702NDGI Applications
There are a lot of Renesas Electronics America Inc. 5V49EE702NDGI Clock Generators applications.
- Wireless infrastructure
- Radiotelephones
- Integrated phase noise in aerospace systems
- Clock signals to the high-speed Digital RF circuits
- Signal frequency synthesis circuits
- High-frequency induction heating
- Automatic control system test
- Simple clock clean-up circuits
- FMCW Radar
- Signal demodulation
