Name: 410-83-372-01-640101
Brand: Preci-Dip
SKU: 410-83-372-01-640101
Price: 7.88000 USD
Availability: InStock

new-10%

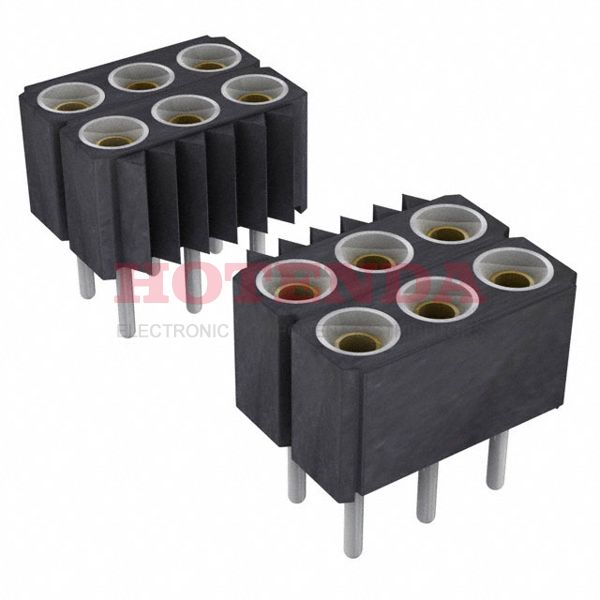

410-83-372-01-640101

Manufacturer part number:410-83-372-01-640101

Manufacturer:Preci-Dip

Description:3 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled72 PositionsFemale Socket

Case Package:SOT-23

Datasheet:410-83-372-01-640101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIL
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	410
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	72
Number of Rows	3
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.165 4.20mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	2.4 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	3
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.165 inch
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1400VAC V
PCB Contact Row Spacing	2.54 mm
Durability	500 Cycles
Contact Finish Thickness - Mating	29.5μin 0.75μm
Length - Termination	0.125 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

410-83-372-01-640101 Product Details

410-83-372-01-640101 Overview

Packaging for this item is Socket.Mounting type Through Hole is selected for the device.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 410 Series.Packages with the SIL enclose a device.Through Hole is the mounting point for the part.-55°C~125°C Operating Temperature is used by the device.
