Name: M20-7890446
Brand: Harwin Inc.
SKU: M20-7890446
Price: 1.26000 USD
Availability: InStock

new-10%

M20-7890446

Manufacturer part number:M20-7890446

Manufacturer:Harwin Inc.

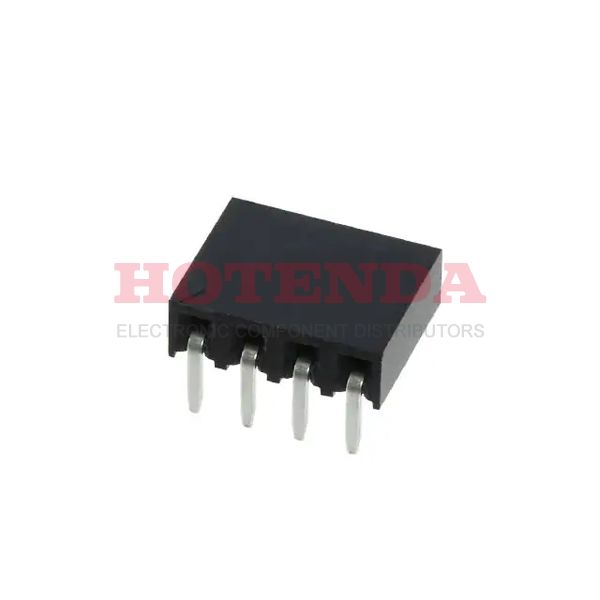

Description:1 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeTinPolyamide (PA6T), Nylon 6T4 PositionsFemale Socket

Case Package:SOT-23

Datasheet:M20-7890446 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Package / Case	SIL
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T
Housing Material	Nylon
Weight	413.988086mg
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2005
Series	M20
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	4
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	1
Voltage - Rated	1000V
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Orientation	Right Angle
Depth	8.1mm
Insulation Height	0.130 3.30mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.118 3.00mm
Number Of PCB Rows	2
Lead Pitch	2.54mm
PCB Contact Pattern	STAGGERED
Contact Gender	Female
Housing Color	Black
Rated Current (Signal)	3A
Contact Resistance	15mOhm
Insulation Resistance	1MOhm
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Hole Diameter	800 μm
Length	10.36mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

M20-7890446 Product Details

M20-7890446 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the M20 Series.Moreover, there are a number of other features, including ROHS COMPLIANT, to name just a few.The packaging with the SIL contains a device.A possible application for the device is General Purpose, Industrial, Telecommunications.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.
