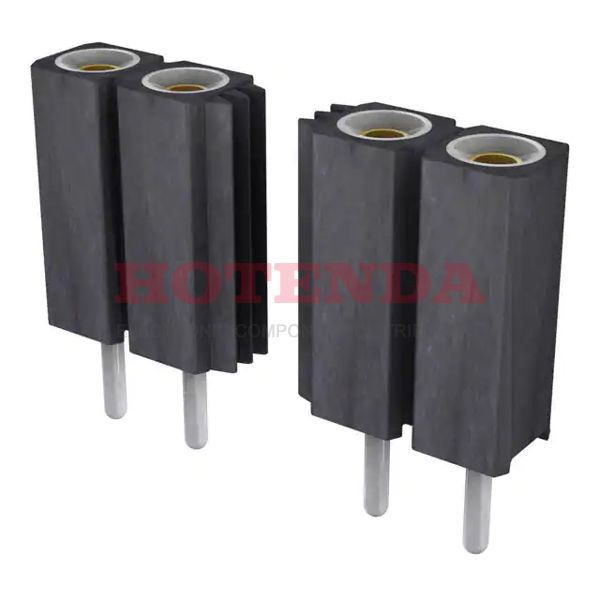

Name: 801-87-016-10-132101
Brand: Preci-Dip
SKU: 801-87-016-10-132101
Price: 1.49000 USD
Availability: InStock

new-10%

801-87-016-10-132101

Manufacturer part number:801-87-016-10-132101

Manufacturer:Preci-Dip

Description:1 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled16 PositionsFemale Socket

Case Package:SOT-23

Datasheet:801-87-016-10-132101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	801
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	16
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.276 7.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.118 3.00mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

801-87-016-10-132101 Product Details

801-87-016-10-132101 Overview

Packaging for this item is Socket.A Through Hole mounting type is specified for the device.This product is packaged in a case marked Bulk.Among the products in the 801 Series, it is one of the most popular.It's mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
