Name: 346-83-120-41-035101
Brand: Preci-Dip
SKU: 346-83-120-41-035101
Price: 2.72000 USD
Availability: InStock

new-10%

346-83-120-41-035101

Manufacturer part number:346-83-120-41-035101

Manufacturer:Preci-Dip

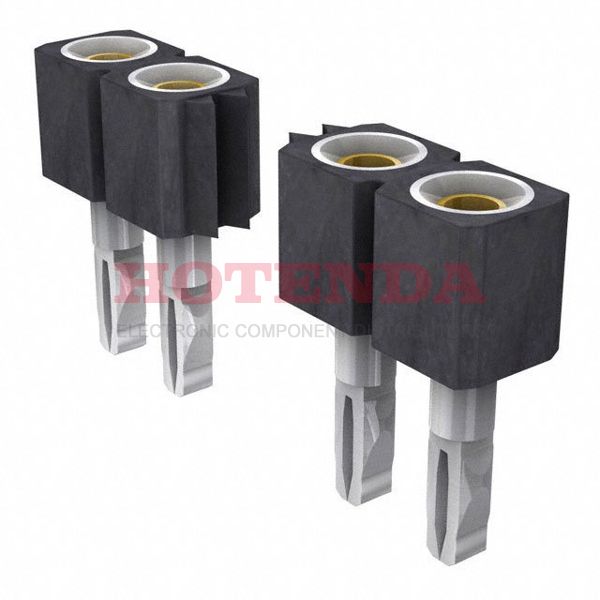

Description:1 RowsSocketPress-Fit, SolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:346-83-120-41-035101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	346
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
Connector Type	Socket
Number of Positions	20
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.173 4.40mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	2 inch
Contact Length - Post	0.150 3.81mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

346-83-120-41-035101 Product Details

346-83-120-41-035101 Overview

The packaging is Socket.Through Hole indicates that the device is mounted.We use a Bulk case to package the product.This product is in the 346 Series.Part Through Hole is mounted to the part.This device operates at a temperature of -55°C~125°C.
