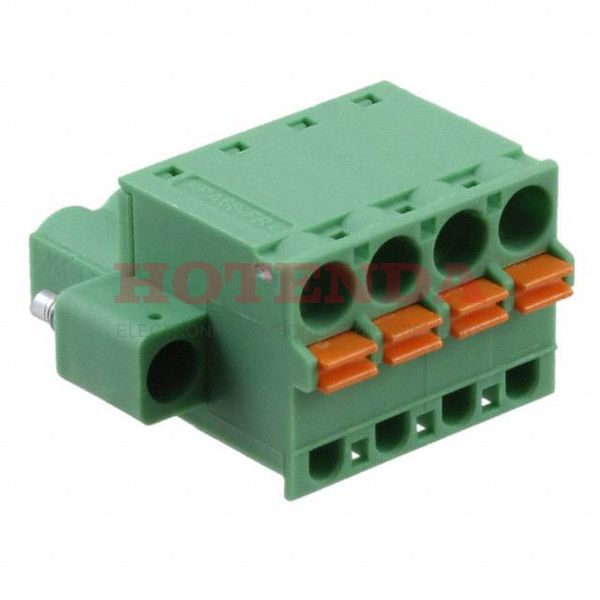

Name: 1902327
Brand: Phoenix Contact
SKU: 1902327
Price: 6.14000 USD
Availability: InStock

new-10%

1902327

Manufacturer part number:1902327

Manufacturer:Phoenix Contact

Description:1902327 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1902327 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON FKCT
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Termination Style	Screwless - Leg Spring, Push-In Spring
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Rated Voltage	250V
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1902327 Product Details

1902327 Overview

There is a mounting type of Free Hanging (In-Line) for this device.This product is packaged in a case marked Bulk.It is part of the COMBICON FKCT Series of products.Its Mating Flange feature renders it more powerful in many ways.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
