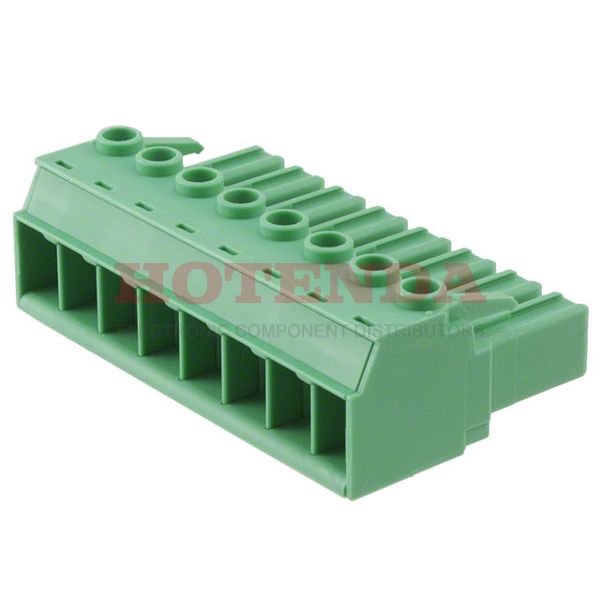

Name: 1777781
Brand: Phoenix Contact
SKU: 1777781
Price: 17.23000 USD
Availability: InStock

new

1777781

Manufacturer part number:1777781

Manufacturer:Phoenix Contact

Description:1777781 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777781 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	8
Color	Green
Gender	Female
Voltage - Rated	1kV
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	35.5mm
Insulation Height	0.776 19.70mm
Reach Compliance Code	not_compliant
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	41A
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	8-24 AWG
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Number of Positions Per Level	8
Screw Size	M3
Length	60.91mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1777781 Product Details

1777781 Overview

Packaging is in the form of Screw.This device's mounting type is Free Hanging (In-Line).Packaged in a Bulk case.The product is part of the COMBICON PC Series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.In this case, Free Hanging mounts the part.It is recommended that this chip's supply voltage does not exceed 1kV.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
