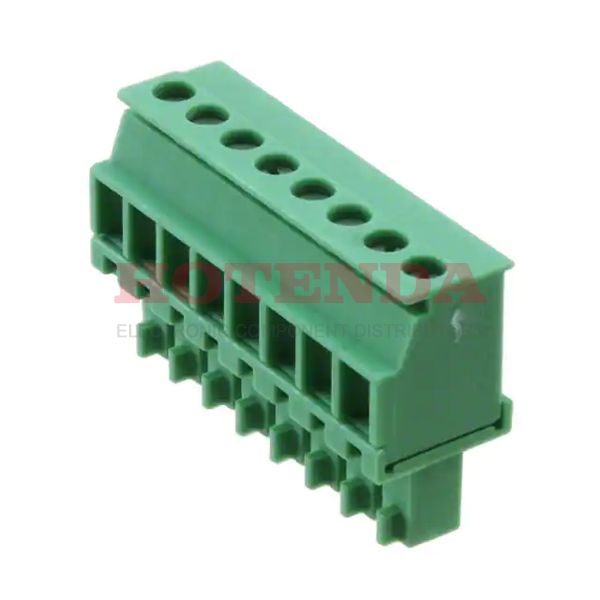

Name: 1827185
Brand: Phoenix Contact
SKU: 1827185
Price: 10.53000 USD
Availability: InStock

new

1827185

Manufacturer part number:1827185

Manufacturer:Phoenix Contact

Description:1827185 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1827185 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	99.999994g
Packaging	Bulk
Published	2001
Series	COMBICON MCVR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket, Terminal Block
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, 94V-0
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	10.4mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	3.81mm
Number of Contacts	8
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	31.37mm
Width	30.97mm
Thickness	26.67mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1827185 Product Details

1827185 Overview

This product is packaged in a Screw, Socket, Terminal Block carton.Its mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.It's part of the COMBICON MCVR Series.In addition, there are other features such as PA, 94V-0, to mention only a few.It's mounted by Cable, Free Hanging.This chip's supply voltage should not exceed 160V.This part shares lots of benefits with other Plug, Female Sockets products.
