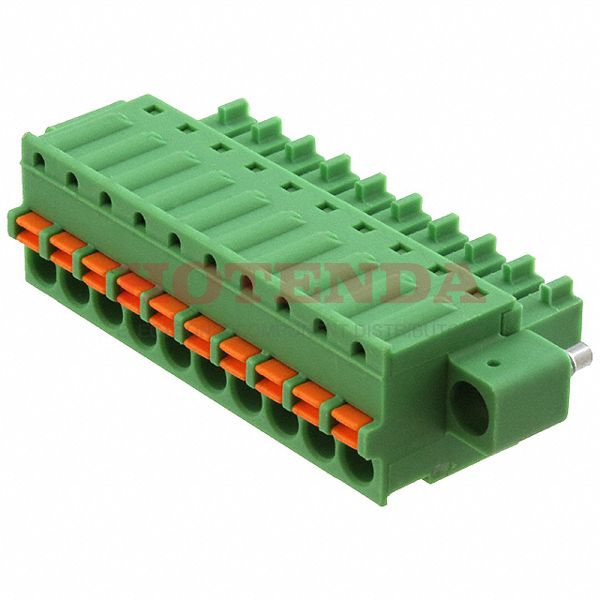

1851313

1851313

1851313

Phoenix Contact

1851313 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1851313 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialCopper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 101.999997g
PackagingBulk
Published 2011
Series COMBICON FK-MCP
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.488 12.40mm
Current Rating8A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 9mm
Number of Positions Per Level 10
Fastening Method SPRING LOADED
Height 20.8mm
Length 12.4mm
Width 48.49mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:365 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$19.37000$19.37
10$18.84100$188.41
50$17.60860$880.43
100$16.19990$1619.99
250$14.96728$3741.82
500$14.26286$7131.43

1851313 Product Details

1851313 Overview


The product is packaged in Socket.There is a Free Hanging (In-Line) mounting type for the device.In order to package the product, a Bulk case is used.This product is from the COMBICON FK-MCP Series.Further, there are features such as PA, 94V-0, to name only a few.In many ways, its Mating Flange feature makes it more powerful.There is a mounting hole at Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.

1851313 Features


COMBICON FK-MCP series

1851313 Applications


There are a lot of Phoenix Contact 1851313 Terminal Blocks applications.

  • Variable speed/frequency drivers
  • All Electrical Machinery
  • Embedded systems
  • Industrial Automation
  • Communication
  • Anywhere power is distributed
  • Medical technology
  • Blowers
  • Datacom
  • Automotive Electronics
