1834929

1834929

1834929

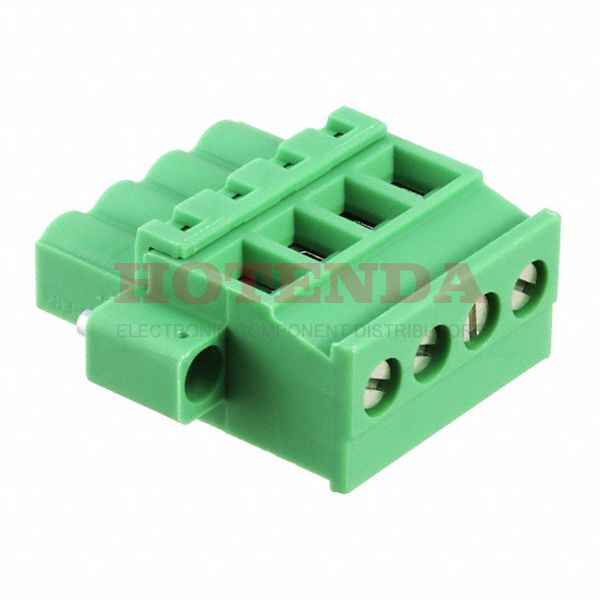

Phoenix Contact

1834929 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1834929 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 133.000002g
PackagingBulk
Published 2011
Series COMBICON MVSTBW
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 1.024 26.01mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 12.6mm
Width 30.48mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1526 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.01000$5.01
10$4.87600$48.76
50$4.55700$227.85
100$4.19240$419.24
250$3.87344$968.36
500$3.69120$1845.6

1834929 Product Details

1834929 Overview


The product comes in a package of Socket.It's mounted Free Hanging (In-Line).We pack the product in a Bulk case.This product is part of the COMBICON MVSTBW Series.This feature makes it more powerful in a number of ways due to its Mating Flange, Retention Latches (Non-Wire Side) feature.It's mounted by Free Hanging.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1834929 Features


COMBICON MVSTBW series

1834929 Applications


There are a lot of Phoenix Contact 1834929 Terminal Blocks applications.

  • LED municipal outdoor and street lighting
  • Instrumentation
  • Transportation
  • Datacom
  • Energy efficient lighting (LED)
  • Data Technology
  • All Electrical Machinery
  • Medical technology
  • Control panels
  • Blowers
