Name: 1933325
Brand: Phoenix Contact
SKU: 1933325
Price: 1.46000 USD
Availability: InStock

new-10%

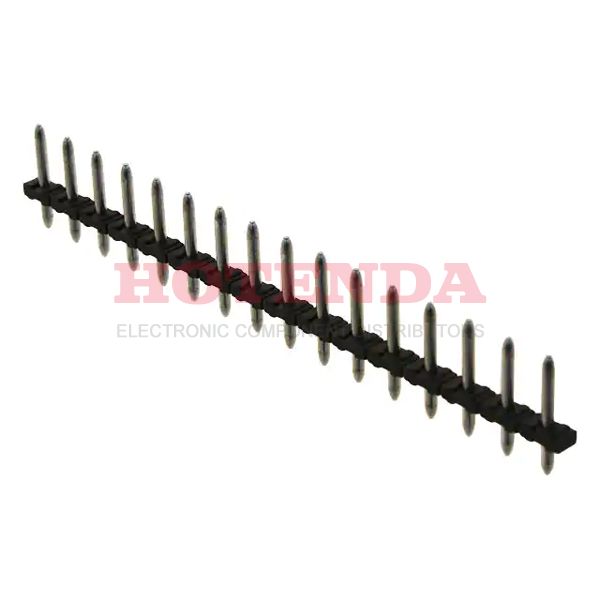

1933325

Manufacturer part number:1933325

Manufacturer:Phoenix Contact

Description:1933325 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1933325 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.690001g
Packaging	Bulk
Published	2002
Series	COMBICON PST
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Unshrouded
Color	Black
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	2.8mm
Insulation Height	0.079 2.00mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	16
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	16
Height	13mm
Length	80mm
Width	80mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1933325 Product Details

1933325 Overview

This device's mounting type is Through Hole.In order to package the product, a Bulk case is used.This is from the COMBICON PST Series.In addition, there are other features such as PA, UL 94V0, to mention only a few.By Through Hole, the part is mounted.Several of the benefits of this part are also shared by other Header, Male Pins, Unshrouded products.
