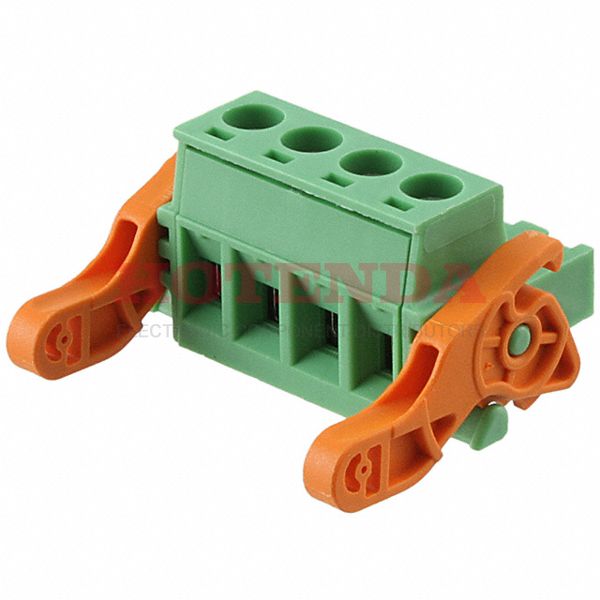

Name: 1808909
Brand: Phoenix Contact
SKU: 1808909
Price: 4.63000 USD
Availability: InStock

new-10%

1808909

Manufacturer part number:1808909

Manufacturer:Phoenix Contact

Description:1808909 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808909 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Male
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15.5mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	4
Screw Size	M3
Width	29.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1808909 Product Details

1808909 Overview

Screw packaging is included.Its mounting type is Free Hanging (In-Line).We package the product with a Bulk case.COMBICON MSTB Series product.This feature makes it more powerful in a number of ways due to its Ejector Latches feature.Part Cable, Free Hanging is mounted to the part.As with other Plug, Female Sockets products, this part has a lot of benefits.
