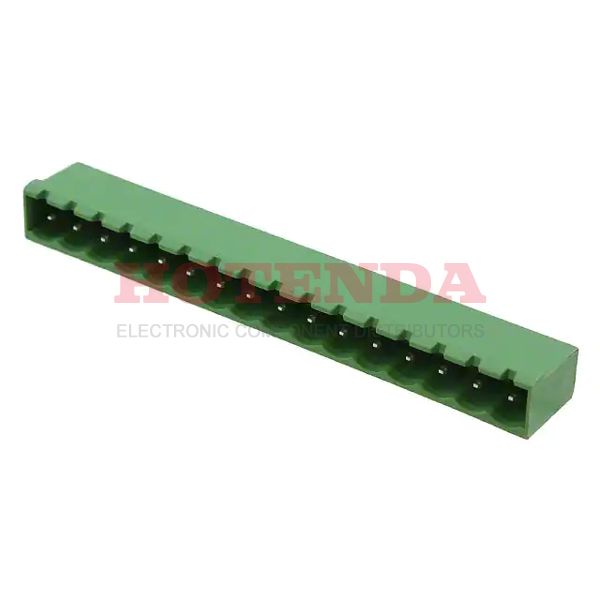

Name: 1757381
Brand: Phoenix Contact
SKU: 1757381
Price: 6.35000 USD
Availability: InStock

new-10%

1757381

Manufacturer part number:1757381

Manufacturer:Phoenix Contact

Description:1757381 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757381 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	152.999995g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	8.6mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	16
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Number of Positions Per Level	16
Height	12.1mm
Length	93.44mm
Width	83.2mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757381 Product Details

1757381 Overview

The packaging contains Plug.Mounting type is Through Hole.The product is packaged in a Bulk case.COMBICON MSTBA Series product.Other features include PBT, UL 94V-0, to name just a few.It's mounted by Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
