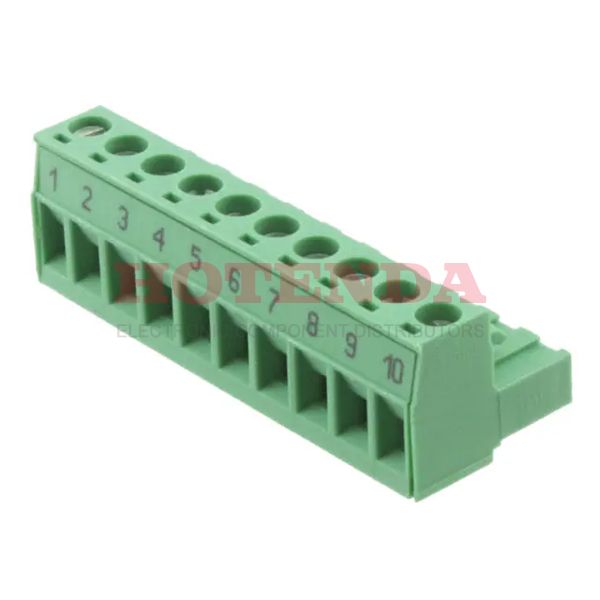

1758403

1758403

1758403

Phoenix Contact

1758403 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1758403 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 17.079992g
PackagingBulk
Published 2011
Series COMBICON MSTB
Feature Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 250V
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Poles 10
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 10
Safety Approval UL; VDE; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm
Height 18.3mm
Length 15mm
Width 50.8mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:762 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$15.459194$15.459194
10$14.584145$145.84145
100$13.758628$1375.8628
500$12.979837$6489.9185
1000$12.245130$12245.13

1758403 Product Details

1758403 Overview


This product is packaged in a Screw, Socket box.Free Hanging (In-Line) is the mounting type for the device.Packaged in a Bulk case.It belongs to the COMBICON MSTB Series of products.Its Positions Stamped, Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Free Hanging, Plug-In is used to mount the part.There are many benefits shared between this part and other Plug, Female Sockets products.

1758403 Features


COMBICON MSTB series

1758403 Applications


There are a lot of Phoenix Contact 1758403 Terminal Blocks applications.

  • Measuring & Control Technology
  • Control panels
  • Embedded systems
  • Communication
  • Telecommunications
  • LED municipal outdoor and street lighting
  • Data Technology
  • Energy efficient lighting (LED)
  • Medical technology
  • Refrigeration control
