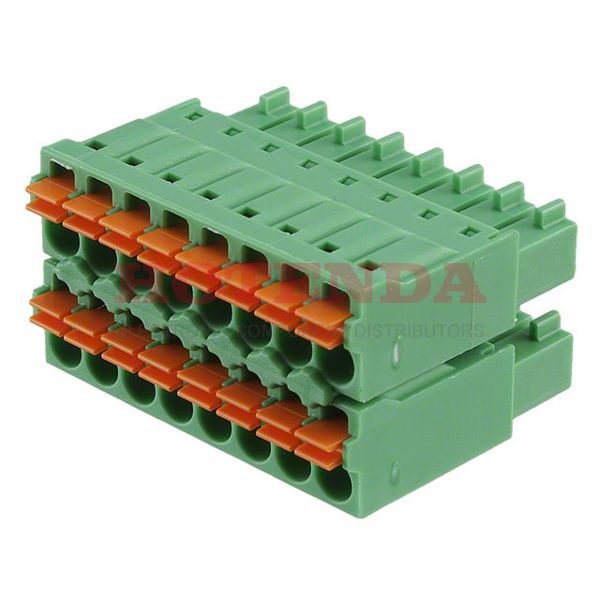

Name: 1738869
Brand: Phoenix Contact
SKU: 1738869
Price: 21.16000 USD
Availability: InStock

new

1738869

Manufacturer part number:1738869

Manufacturer:Phoenix Contact

Description:1738869 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1738869 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	9.467011g
Packaging	Bulk
Published	2011
Series	COMBICON FMCD
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	2
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V0
Pitch	0.138 3.50mm
Orientation	Straight
Depth	16mm
Insulation Height	0.630 16.00mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Number of Contacts	8
Voltage	150V
Max Current Rating	8A
Number of Levels	2
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Fastening Method	SPRING LOADED
Height	22.9mm
Length	21mm
Width	28.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1738869 Product Details

1738869 Overview

Currently, it is packaged in Socket.Free Hanging (In-Line) indicates that the device is mounted.Bulk cases are used to package the product.It is part of the COMBICON FMCD Series of products.Other features include PA, UL 94V0, to name just a few.Mounting of the part is based on Cable, Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
