Name: FC6943010R
Brand: Panasonic Electronic Components
SKU: FC6943010R
Availability: InStock

new-10%

FC6943010R

Manufacturer part number:FC6943010R

Manufacturer:Panasonic Electronic Components

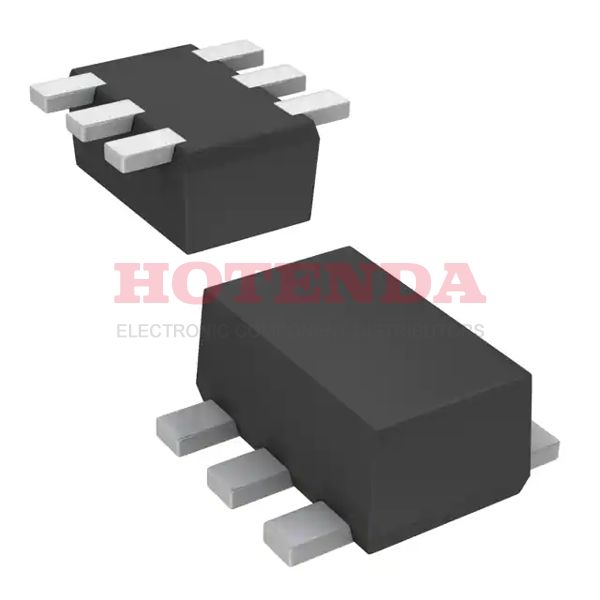

Description:MOSFET COMPOSITE SM SIG MOS FLAT LEAD 1.6x1.6mm

Case Package:SOT-23

Datasheet:FC6943010R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Number of Pins	6
Transistor Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Tape & Reel (TR)
Published	2010
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
HTS Code	8541.21.00.95
Subcategory	FET General Purpose Power
Max Power Dissipation	125mW
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	FC694301
Number of Elements	2
Element Configuration	Dual
Operating Mode	ENHANCEMENT MODE
Turn On Delay Time	100 ns
FET Type	2 N-Channel (Dual)
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	8 Ω @ 10mA, 4V
Vgs(th) (Max) @ Id	1.5V @ 1μA
Input Capacitance (Ciss) (Max) @ Vds	12pF @ 3V
Drain to Source Voltage (Vdss)	30V
Turn-Off Delay Time	100 ns
Continuous Drain Current (ID)	100mA
Threshold Voltage	1V
Gate to Source Voltage (Vgs)	12V
Drain Current-Max (Abs) (ID)	0.1A
Drain-source On Resistance-Max	6Ohm
DS Breakdown Voltage-Min	30V
FET Technology	METAL-OXIDE SEMICONDUCTOR
FET Feature	Standard
Nominal Vgs	1 V
Height	500μm
Length	1.6mm
Width	1.2mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

About FC6943010R

The FC6943010R from Panasonic Electronic Components is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET COMPOSITE SM SIG MOS FLAT LEAD 1.6x1.6mm.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the FC6943010R, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
