ECW-F6163HL

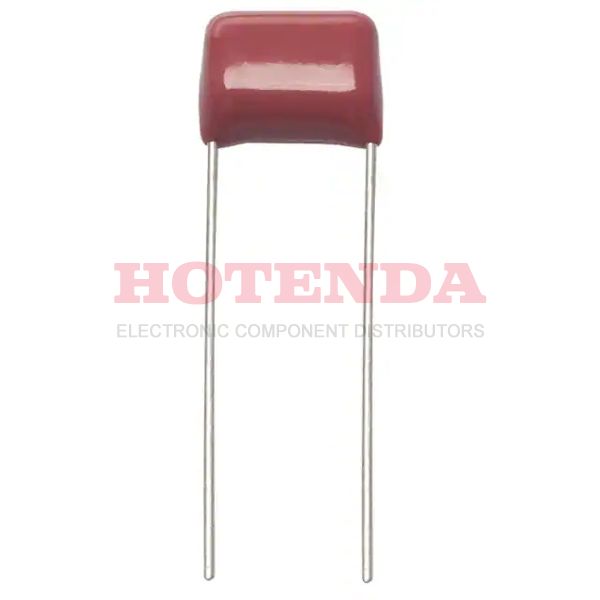

  • ECW-F6163HL - ECW-F(L) 0.016μF Film Capacitor ±3% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F6163HL - ECW-F(L) 0.016μF Film Capacitor ±3% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

ECW-F6163HL

ECW-F6163HL

Panasonic Electronic Components

ECW-F(L) 0.016μF Film Capacitor ±3% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F6163HL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.492Lx0.236W 12.50mmx6.00mm
Tolerance ±3%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.016μF
Voltage - Rated DC 630V
Packing Method AMMO PACK
Depth 6mm
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 4924
Height Seated (Max) 0.409 10.40mm
RoHS StatusROHS3 Compliant
Lead Free Contains Lead
In-Stock:4151 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.547586$1.547586
10$1.459987$14.59987
100$1.377346$137.7346
500$1.299383$649.6915
1000$1.225833$1225.833

ECW-F6163HL Product Details

ECW-F6163HL Overview


Electrical devices with 0.394 10.00mm lead spacing are used in this application.Temperatures as low as -40°C~105°C are suitable for the device.

ECW-F6163HL Features



ECW-F6163HL Applications


There are a lot of Panasonic Electronic Components ECW-F6163HL applications of film capacitors.

  • VCO's
  • TV and monitor sets
  • Switch-mode power supplies
  • Lighting
  • Audio/video equipment
  • Switch mode power supplies
  • Battery management system
  • Mobile communications
  • Bypassing
  • Electronic ballasts
