FKP2C023301L00HSSD

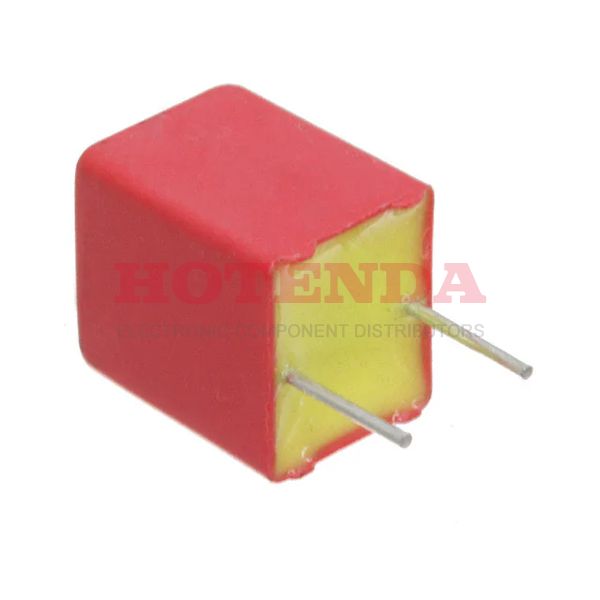

  • FKP2C023301L00HSSD - 0.033μF Film Capacitor ±2.5% Radial PC Pins 40V-AC Polypropylene (PP)
  • FKP2C023301L00HSSD - 0.033μF Film Capacitor ±2.5% Radial PC Pins 40V-AC Polypropylene (PP)

FKP2C023301L00HSSD

FKP2C023301L00HSSD

WIMA

0.033μF Film Capacitor ±2.5% Radial PC Pins 40V-AC Polypropylene (PP)

SOT-23

FKP2C023301L00HSSD Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP)
Operating Temperature-55°C~100°C
PackagingBulk
Published 2012
Size / Dimension 0.283Lx0.335W 7.20mmx8.50mm
Tolerance ±2.5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 63V
Additional FeatureRATED AC VOLTAGE (V): 40
HTS Code8532.25.00.70
Capacitance 0.033μF
Depth 8.5mm
Voltage - Rated AC 40V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2833
Dissipation Factor3 %
Rated (AC) Voltage (URac) 40V
Height 10mm
Height Seated (Max) 0.394 10.00mm
Length 7.2mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:8841 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.844367$0.844367
10$0.796572$7.96572
100$0.751484$75.1484
500$0.708947$354.4735
1000$0.668818$668.818

FKP2C023301L00HSSD Product Details

FKP2C023301L00HSSD Overview


Electrical devices have 0.197 5.00mm lead spacing.To power systems, URac must be set at 40V V.Temperatures of -55°C~100°C are suitable for operating the device.

FKP2C023301L00HSSD Features


an internal rated (AC) voltage (URac) of 40V


FKP2C023301L00HSSD Applications


There are a lot of WIMA
FKP2C023301L00HSSD applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
