947D181K122BCMSN

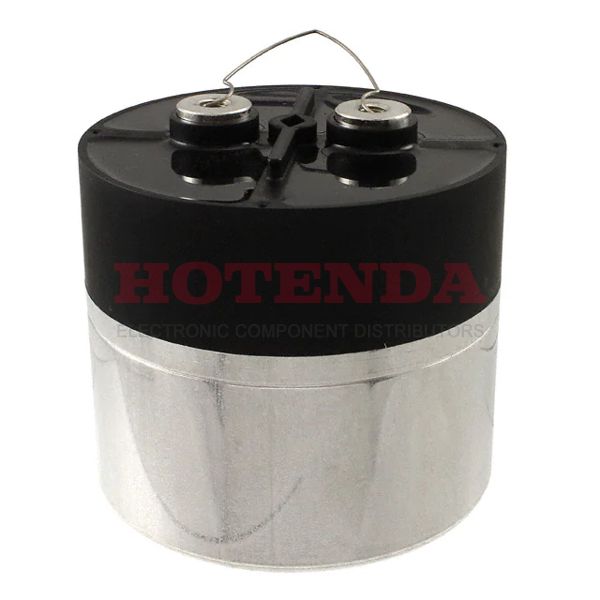

  • 947D181K122BCMSN - 947D 180μF Film Capacitor ±10% Radial, Can Threaded, Female 1.2kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount
  • 947D181K122BCMSN - 947D 180μF Film Capacitor ±10% Radial, Can Threaded, Female 1.2kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

947D181K122BCMSN

947D181K122BCMSN

Cornell Dubilier Electronics (CDE)

947D 180μF Film Capacitor ±10% Radial, Can Threaded, Female 1.2kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

SOT-23

947D181K122BCMSN Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Chassis Mount
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Terminal Shape BINDING POST
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-45°C~85°C
PackagingBulk
Published 2014
Series 947D
Size / Dimension 3.543Dia 90.00mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Threaded, Female
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications DC Link, DC Filtering
Capacitance 180μF
Voltage - Rated DC 1.2kV
Reach Compliance Code unknown
Voltage - Rated AC 230V
Lead Pitch 45.0088mm
Capacitor Type FILM CAPACITOR
Dielectric PP
ESR (Equivalent Series Resistance) 1.6mOhm
Lead Spacing1.772 45.00mm
Diameter 90mm
Height Seated (Max) 2.992 76.00mm
RoHS StatusROHS3 Compliant
In-Stock:157 items

Pricing & Ordering

QuantityUnit PriceExt. Price
100$55.71800$5571.8

947D181K122BCMSN Product Details

947D181K122BCMSN Overview


It has 1.6mOhm ESR (Equivalent Series Resistance).Lead spacing is 1.772 45.00mm for this electrical device.A temperature of -45°C~85°C is suitable for operation of the device.

947D181K122BCMSN Features


1.6mOhm equivalent series resistance (ESR)

947D181K122BCMSN Applications


There are a lot of Cornell Dubilier Electronics (CDE) 947D181K122BCMSN applications of film capacitors.

  • Audio/video equipment
  • Blocking
  • IGBT
  • Snubbering
  • Filters
  • Global positioning systems
  • Lighting
  • Bypassing
  • Mobile communications
  • RF Modules
