ECW-FG1B105J

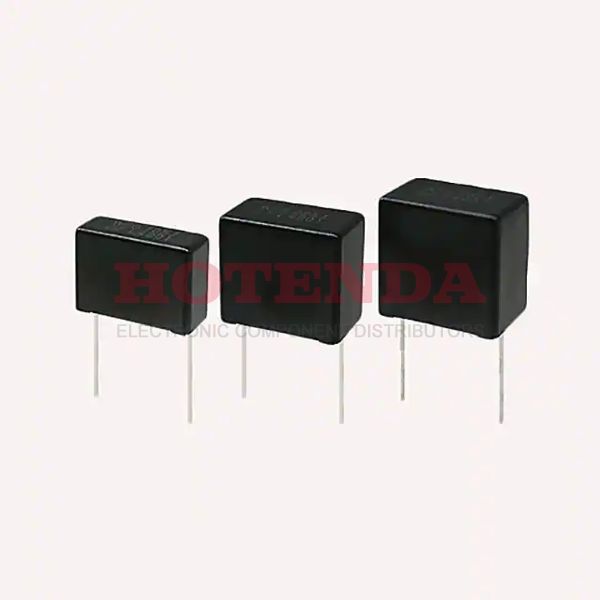

  • ECW-FG1B105J - ECWFG 1μF Film Capacitor ±5% Radial PC Pins 1100V 1.1kV-DC Polypropylene (PP), Metallized
  • ECW-FG1B105J - ECWFG 1μF Film Capacitor ±5% Radial PC Pins 1100V 1.1kV-DC Polypropylene (PP), Metallized

ECW-FG1B105J

ECW-FG1B105J

Panasonic Electronic Components

ECWFG 1μF Film Capacitor ±5% Radial PC Pins 1100V 1.1kV-DC Polypropylene (PP), Metallized

SOT-23

ECW-FG1B105J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Series ECWFG
Size / Dimension 1.240Lx0.413W 31.50mmx10.50mm
Tolerance ±5%
Feature High Temperature
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching
Capacitance 1μF
Voltage - Rated DC 1100V 1.1kV
Lead Spacing1.083 27.50mm
Height Seated (Max) 0.846 21.50mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:4272 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.666631$1.666631
10$1.572294$15.72294
100$1.483296$148.3296
500$1.399335$699.6675
1000$1.320128$1320.128

ECW-FG1B105J Product Details

ECW-FG1B105J Overview


There is 1.083 27.50mm lead spacing on this electrical device.It is capable of operating at -40°C~110°C degrees Celsius.

ECW-FG1B105J Features



ECW-FG1B105J Applications


There are a lot of Panasonic Electronic Components ECW-FG1B105J applications of film capacitors.

  • Snubbering
  • IGBT
  • VCO's
  • Coupling, decoupling
  • TV and monitor sets
  • Matching networks
  • Lighting
  • RF Modules
  • Mobile communications
  • Bypassing
