ECW-F2185RJA

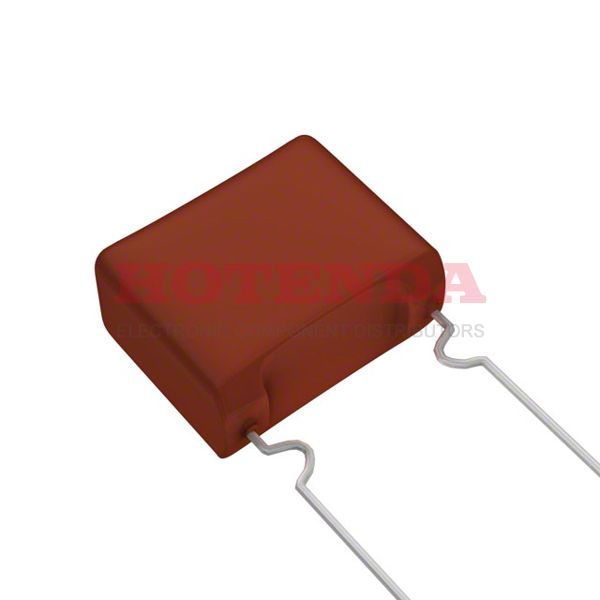

  • ECW-F2185RJA - ECW-F(A) 1.8μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F2185RJA - ECW-F(A) 1.8μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

ECW-F2185RJA

ECW-F2185RJA

Panasonic Electronic Components

ECW-F(A) 1.8μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F2185RJA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Published 2012
Series ECW-F(A)
Size / Dimension 0.740Lx0.449W 18.80mmx11.40mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.80
Capacitance 1.8μF
Voltage - Rated DC 250V
Packing Method Ammo Pack
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.591 15.00mm
Size Code 7445
Height Seated (Max) 0.709 18.00mm
Length 18.8mm
Width 11.4mm
RoHS StatusROHS3 Compliant
In-Stock:5909 items

Pricing & Ordering

QuantityUnit PriceExt. Price
400$1.07825$431.3

ECW-F2185RJA Product Details

ECW-F2185RJA Overview


This electrical device has a 0.591 15.00mm lead spacing.-40°C~105°C is the maximum temperature at which the device can operate.

ECW-F2185RJA Features



ECW-F2185RJA Applications


There are a lot of Panasonic Electronic Components ECW-F2185RJA applications of film capacitors.

  • Battery management system
  • RF Modules
  • Satellite TV
  • Filters
  • TV and monitor sets
  • Test and measuring equipment
  • Compact fluorescent lamps (CFL)
  • Coupling, decoupling
  • IGBT
  • Snubbering
