R76UI182050H4J

  • R76UI182050H4J - R76 8200pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized
  • R76UI182050H4J - R76 8200pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized

R76UI182050H4J

R76UI182050H4J

KEMET

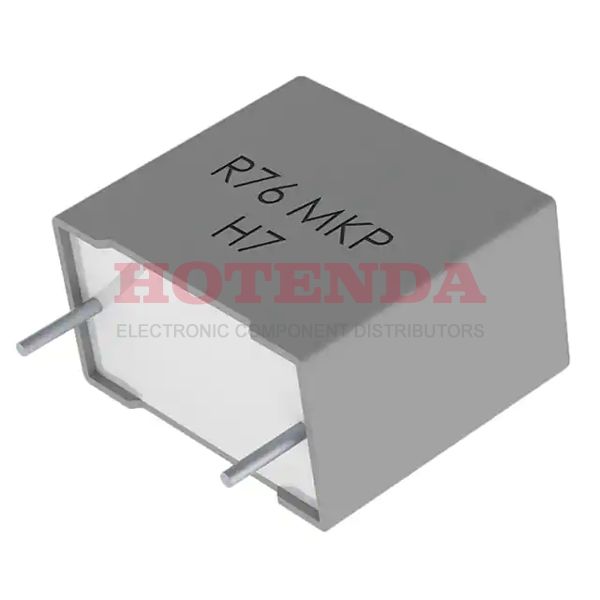

R76 8200pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized

SOT-23

R76UI182050H4J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Series R76
Size / Dimension 0.709Lx0.236W 18.00mmx6.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Capacitance 8200pF
Voltage - Rated DC 2000V 2kV
Voltage - Rated AC 700V
ESR (Equivalent Series Resistance) 233mOhm
Lead Spacing0.591 15.00mm
Height Seated (Max) 0.476 12.10mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:7957 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.77000$0.77
500$0.7623$381.15
1000$0.7546$754.6
1500$0.7469$1120.35
2000$0.7392$1478.4
2500$0.7315$1828.75

R76UI182050H4J Product Details

R76UI182050H4J Overview


There is 233mOhm ESR (Equivalent Series Resistance) from the device.Electrical devices have 0.591 15.00mm lead spacing.A temperature of -55°C~125°C is suitable for operation of the device.

R76UI182050H4J Features


233mOhm equivalent series resistance (ESR)

R76UI182050H4J Applications


There are a lot of KEMET R76UI182050H4J applications of film capacitors.

  • Battery management system
  • Blocking
  • Compact fluorescent lamps (CFL)
  • Bypassing
  • Snubbering
  • Electronic ballasts
  • Filters
  • IGBT
  • VCO's
  • Matching networks
