ECH-U1H103JX5

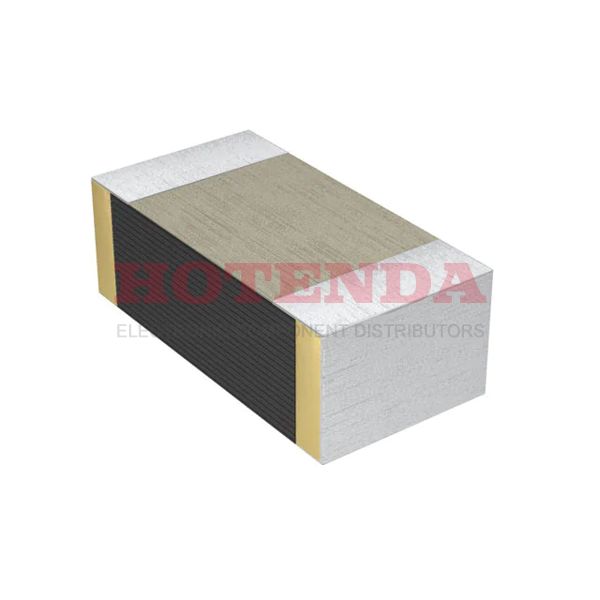

  • ECH-U1H103JX5 - ECH-U(X) 10000pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked
  • ECH-U1H103JX5 - ECH-U(X) 10000pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked

ECH-U1H103JX5

ECH-U1H103JX5

Panasonic Electronic Components

ECH-U(X) 10000pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked

SOT-23

ECH-U1H103JX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Surface MountYES
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2008
Series ECH-U(X)
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 10000pF
Voltage - Rated DC 50V
Packing Method TR, EMBOSSED, 7 INCH
Capacitor Type FILM CAPACITOR
Multilayer No
Rated (DC) Voltage (URdc) 50V
Size Code 1306
Height Seated (Max) 0.051 1.30mm
Length 3.2mm
Width 1.6mm
RoHS StatusROHS3 Compliant
In-Stock:11606 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.427943$0.427943
10$0.403720$4.0372
100$0.380868$38.0868
500$0.359309$179.6545
1000$0.338971$338.971

ECH-U1H103JX5 Product Details

ECH-U1H103JX5 Overview


To function, systems require a rated (DC) voltage (URdc) of 50V.-55°C~125°C is the maximum temperature at which the device can operate.

ECH-U1H103JX5 Features


a rated (DC) voltage (URdc) of 50V

ECH-U1H103JX5 Applications


There are a lot of Panasonic Electronic Components ECH-U1H103JX5 applications of film capacitors.

  • Electronic ballasts
  • RFI for automotive
  • Blocking
  • Global positioning systems
  • TV and monitor sets
  • Test and measuring equipment
  • Satellite TV
  • Filtering
  • Mobile communications
  • IGBT
