35MU685MD15750

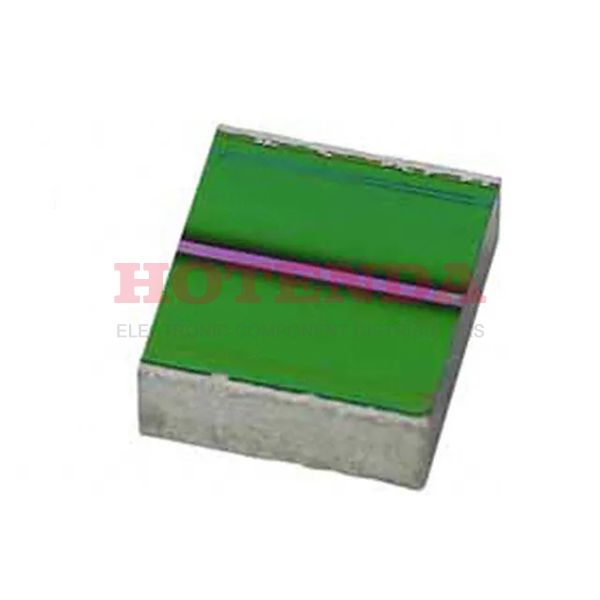

  • 35MU685MD15750 - PMLCAP®, MU 6.8μF Film Capacitor ±20% 2220 (5750 Metric) Solder Pads 35V-DC Acrylic, Metallized Surface Mount
  • 35MU685MD15750 - PMLCAP®, MU 6.8μF Film Capacitor ±20% 2220 (5750 Metric) Solder Pads 35V-DC Acrylic, Metallized Surface Mount

35MU685MD15750

35MU685MD15750

Rubycon

PMLCAP®, MU 6.8μF Film Capacitor ±20% 2220 (5750 Metric) Solder Pads 35V-DC Acrylic, Metallized Surface Mount

SOT-23

35MU685MD15750 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Dielectric MaterialAcrylic, Metallized
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2015
Series PMLCAP®, MU
Size / Dimension 0.224Lx0.197W 5.70mmx5.00mm
Tolerance ±20%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 5 (48 Hours)
Termination Solder Pads
Applications DC Link, DC Filtering
Capacitance 6.8μF
Voltage - Rated DC 35V
Case Code (Metric) 5750
Case Code (Imperial) 2220
Height Seated (Max) 0.079 2.00mm
RoHS StatusROHS3 Compliant
In-Stock:799 items

Pricing & Ordering

QuantityUnit PriceExt. Price
200$7.93600$1587.2
400$7.19200$2876.8
600$6.82000$4092

35MU685MD15750 Product Details

35MU685MD15750 Overview


It is capable of operating at -55°C~125°C degrees Celsius.

35MU685MD15750 Features



35MU685MD15750 Applications


There are a lot of Rubycon 35MU685MD15750 applications of film capacitors.

  • Test and measuring equipment
  • Blocking
  • VCO's
  • IGBT
  • Satellite TV
  • Mobile communications
  • Lighting
  • Bypassing
  • TV and monitor sets
  • Global positioning systems
