ECQ-E2W225KC

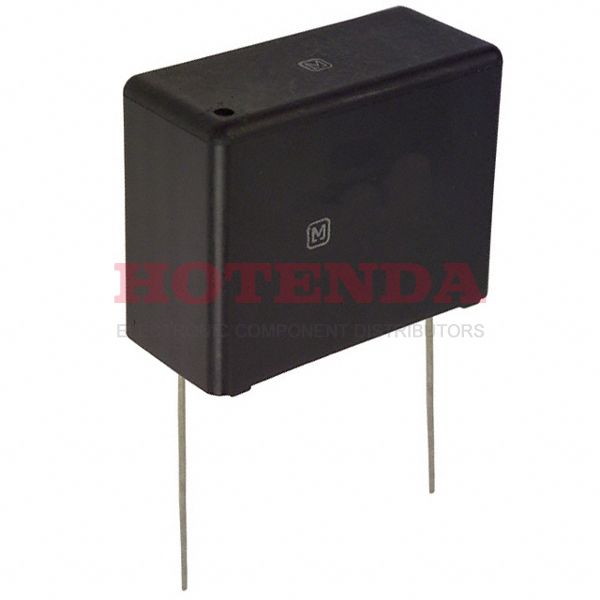

  • ECQ-E2W225KC - ECQ-E(C) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole
  • ECQ-E2W225KC - ECQ-E(C) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole

ECQ-E2W225KC

ECQ-E2W225KC

Panasonic Electronic Components

ECQ-E(C) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2W225KC Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2000
Series ECQ-E(C)
Size / Dimension 1.220Lx0.551W 31.00mmx14.00mm
Tolerance ±10%
JESD-609 Code e3
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 2.2μF
Voltage - Rated DC 450V
Reach Compliance Code unknown
Lead Pitch 27.5082mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Lead Spacing1.083 27.50mm
Height Seated (Max) 0.984 25.00mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:3594 items

ECQ-E2W225KC Product Details

ECQ-E2W225KC Overview


1.083 27.50mm is the lead spacing of this electrical device.The device is capable of operating at the temperature of -40°C~85°C.

ECQ-E2W225KC Features



ECQ-E2W225KC Applications


There are a lot of Panasonic Electronic Components ECQ-E2W225KC applications of film capacitors.

  • Snubbering
  • VCO's
  • IGBT
  • TV and monitor sets
  • Bypassing
  • Switch mode power supplies
  • Filtering
  • Coupling, decoupling
  • Compact fluorescent lamps (CFL)
  • Test and measuring equipment
